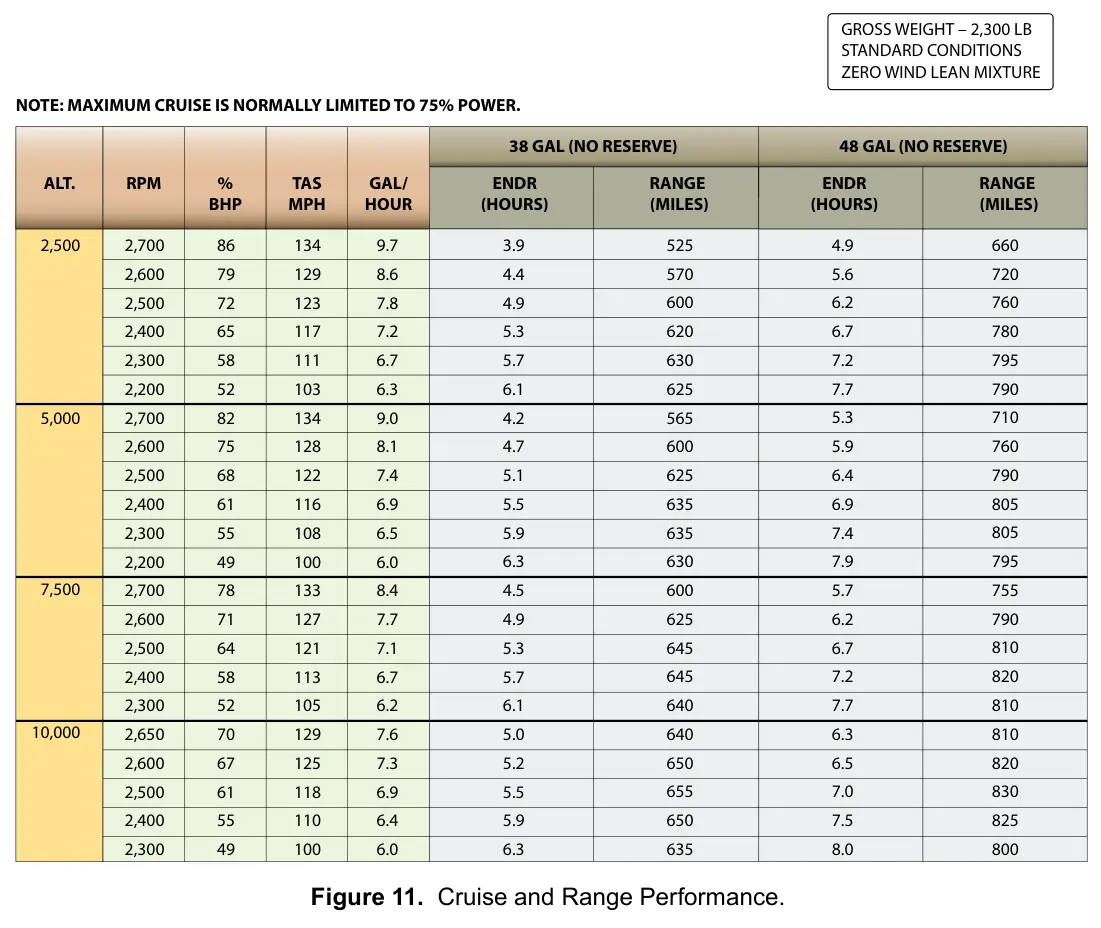

Figure 11: Cruise and Range Performance

ALT. RPM 38 GAL (NO RESERVE) 48 GAL (NO RESERVE) ENDR RANGE (HOURS) (MILES) ENDR RANGE (HOURS) (MILES) 2,500 5,000 7,500 10,000 2,700 2,600 2,500 2,400 2,300 2,200 2,700 2,600 2,500 2,400 2,300 2,200 2,700 2,600 2,500 2,400 2,300 2,650 2,600 2,500 2,400 2,300 % BHP 86 79 72 65 58 52 82 75 68 61 55 49 78 71 64 58 52 70 67 61 55 49 TAS MPH 134 129 123 117 111 103 134 128 122 116 108 100 133 127 121 113 105 129 125 118 110 100 GAL/ HOUR 9.7 8.6 7.8 7.2 6.7 6.3 9.0 8.1 7.4 6.9 6.5 6.0 8.4 7.7 7.1 6.7 6.2 7.6 7.3 6.9 6.4 6.0 3.9 4.4 4.9 5.3 5.7 6.1 4.2 4.7 5.1 5.5 5.9 6.3 4.5 4.9 5.3 5.7 6.1 5.0 5.2 5.5 5.9 6.3 525 570 600 620 630 625 565 600 625 635 635 630 600 625 645 645 640 640 650 655 650 635 4.9 5.6 6.2 6.7 7.2 7.7 5.3 5.9 6.4 6.9 7.4 7.9 5.7 6.2 6.7 7.2 7.7 6.3 6.5 7.0 7.5 8.0 660 720 760 780 795 790 710 760 790 805 805 795 755 790 810 820 810 810 820 830 825 800 GROSS WEIGHT – 2,300 LB STANDARD CONDITIONS ZERO WIND LEAN MIXTURE NOTE: MAXIMUM CRUISE IS NORMALLY LIMITED TO 75% POWER.
