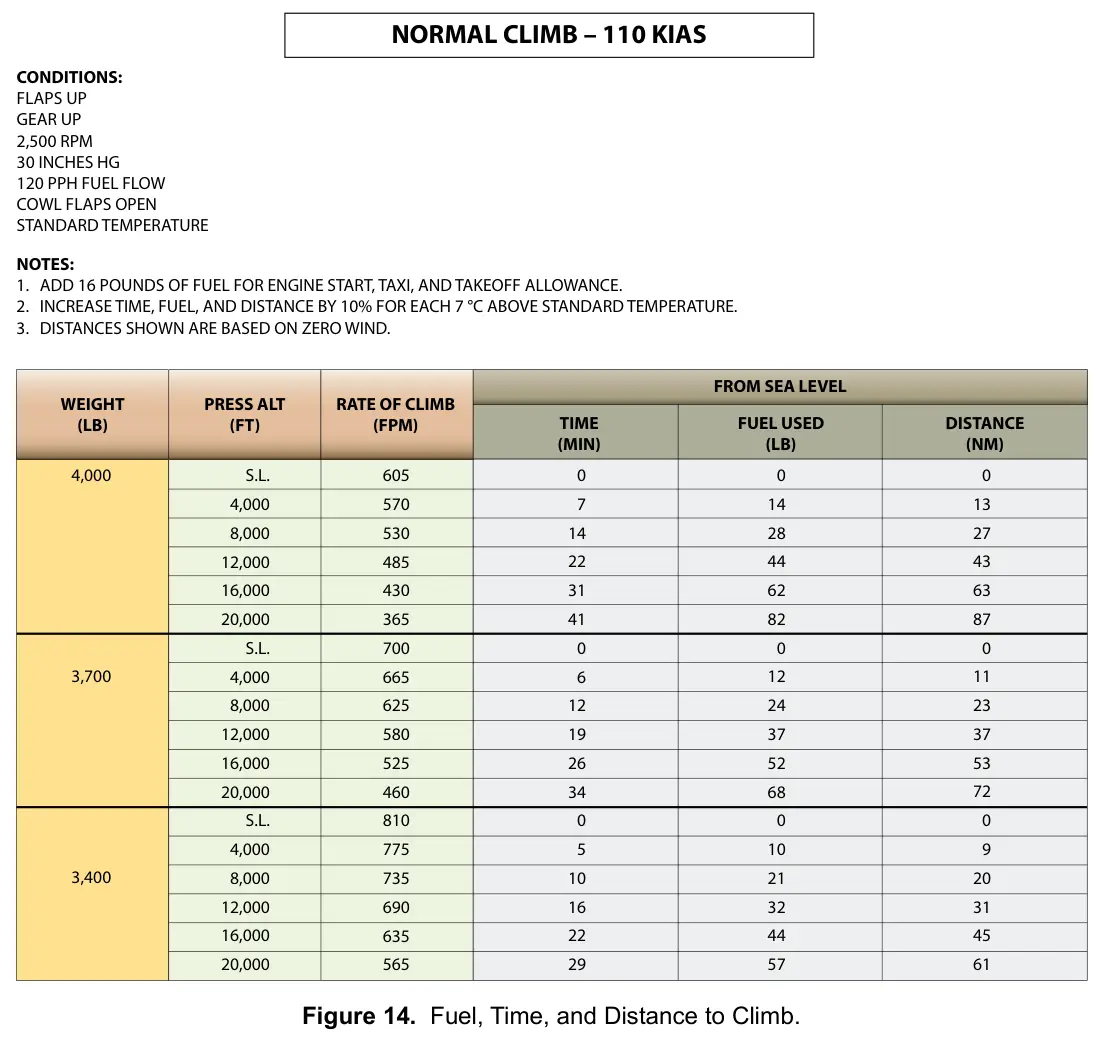

Figure 14: Fuel, Time, and Distance to Climb

WEIGHT (LB) PRESS ALT (FT) RATE OF CLIMB (FPM) FROM SEA LEVEL TIME FUEL USED DISTANCE (MIN) (LB) (NM) 4,000 3,700 3,400 605 570 530 485 430 365 700 665 625 580 525 460 810 775 735 690 635 565 S.L. 4,000 8,000 12,000 16,000 20,000 S.L. 4,000 8,000 12,000 16,000 20,000 S.L. 4,000 8,000 12,000 16,000 20,000 0 7 14 22 31 41 0 6 12 19 26 34 0 5 10 16 22 29 0 14 28 44 62 82 0 12 24 37 52 68 0 10 21 32 44 57 0 13 27 43 63 87 0 11 23 37 53 72 0 9 20 31 45 61 NORMAL CLIMB – 110 KIAS CONDITIONS: FLAPS UP GEAR UP 2,500 RPM 30 INCHES HG 120 PPH FUEL FLOW COWL FLAPS OPEN STANDARD TEMPERATURE NOTES: 1. ADD 16 POUNDS OF FUEL FOR ENGINE START, TAXI, AND TAKEOFF ALLOWANCE. 2. INCREASE TIME, FUEL, AND DISTANCE BY 10% FOR EACH 7 °C ABOVE STANDARD TEMPERATURE. 3. DISTANCES SHOWN ARE BASED ON ZERO WIND.
