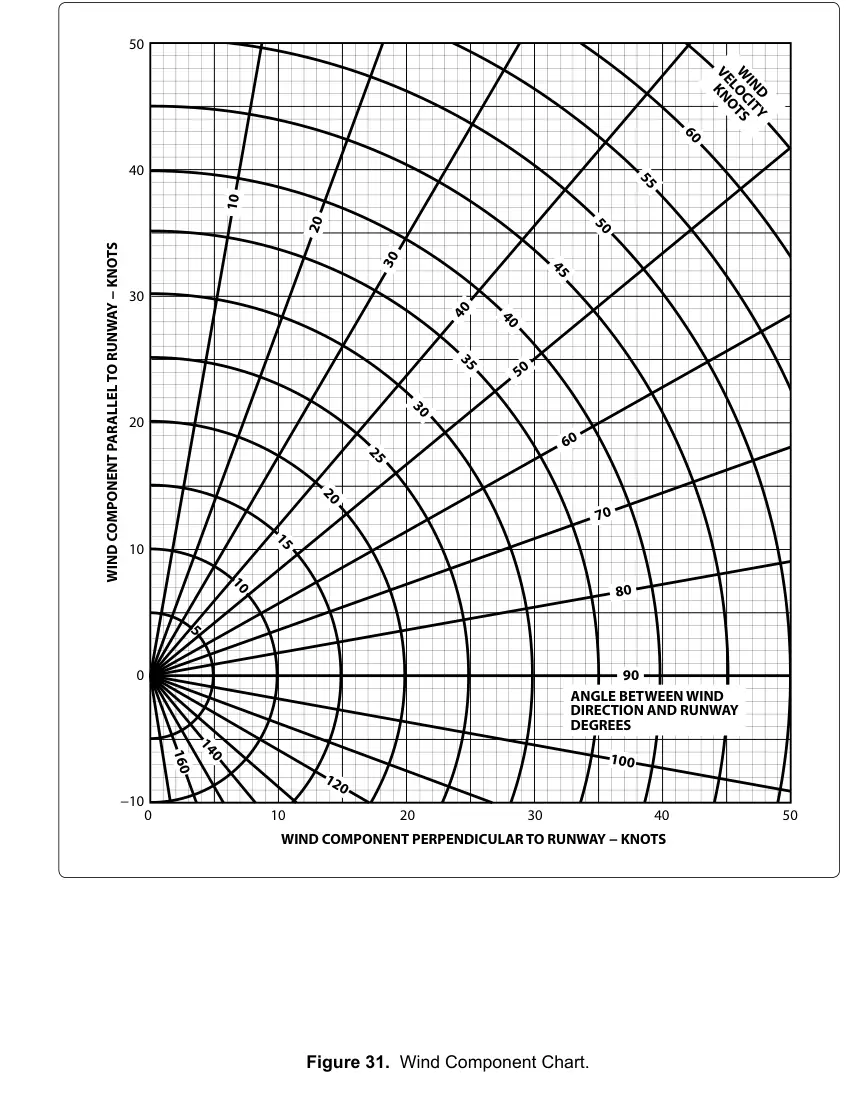

Figure 31: Wind Component Chart

Airman Knowledge Testing Supplement for Commercial PilotOfficial PDF CAXCGXCLACRGCRHCBGCBHMCN

Practice

Text in this figure

50 40 30 20 10 0 −10 0 10 20 30 40 50 WIND COMPONENT PERPENDICULAR TO RUNWAY − KNOTS WIND COMPONENT PARALLEL TO RUNWAY − KNOTS ANGLE BETWEEN WIND DIRECTION AND RUNWAY DEGREES 90 80 70 60 50 40 30 20 10 100 120 140 160 WIND VELOCITY KNOTS 60 55 50 45 40 35 30 25 20 15 10 5
