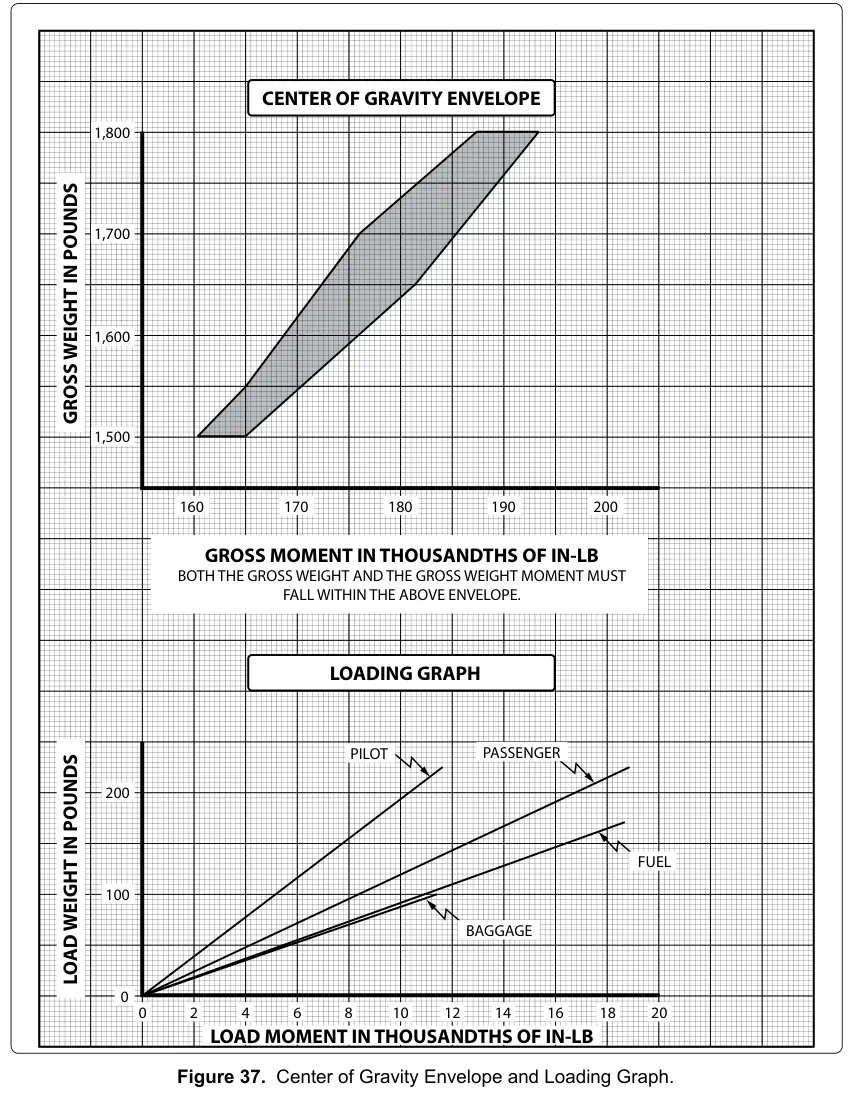

Figure 37: Center of Gravity Envelope and Loading Graph

CENTER OF GRAVITY ENVELOPE LOADING GRAPH GROSS WEIGHT IN POUNDS 2 0 4 6 8 10 12 14 16 18 20 160 170 180 190 200 200 100 0 1,800 1,700 1,600 1,500 LOAD WEIGHT IN POUNDS GROSS MOMENT IN THOUSANDTHS OF IN-LB BOTH THE GROSS WEIGHT AND THE GROSS WEIGHT MOMENT MUST FALL WITHIN THE ABOVE ENVELOPE. LOAD MOMENT IN THOUSANDTHS OF IN-LB PILOT PASSENGER FUEL BAGGAGE
