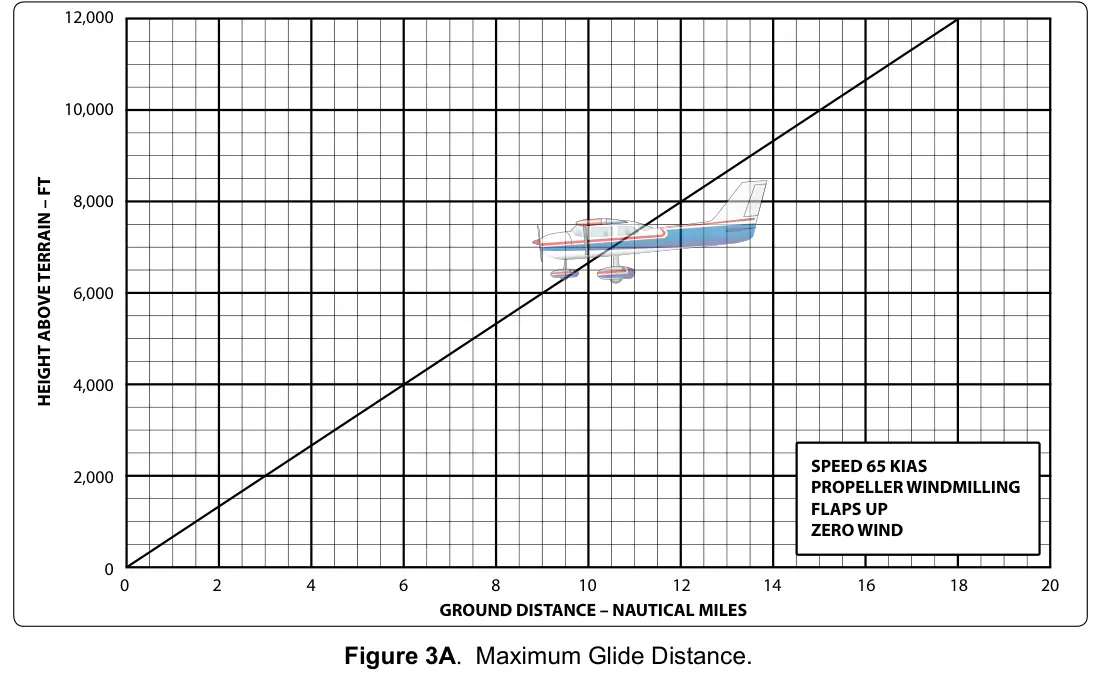

Figure 3A: Maximum Glide Distance

12,000 10,000 8,000 6,000 4,000 2,000 0 0 2 4 6 8 10 12 14 16 18 20 GROUND DISTANCE – NAUTICAL MILES HEIGHT ABOVE TERRAIN – FT SPEED 65 KIAS PROPELLER WINDMILLING FLAPS UP ZERO WIND
