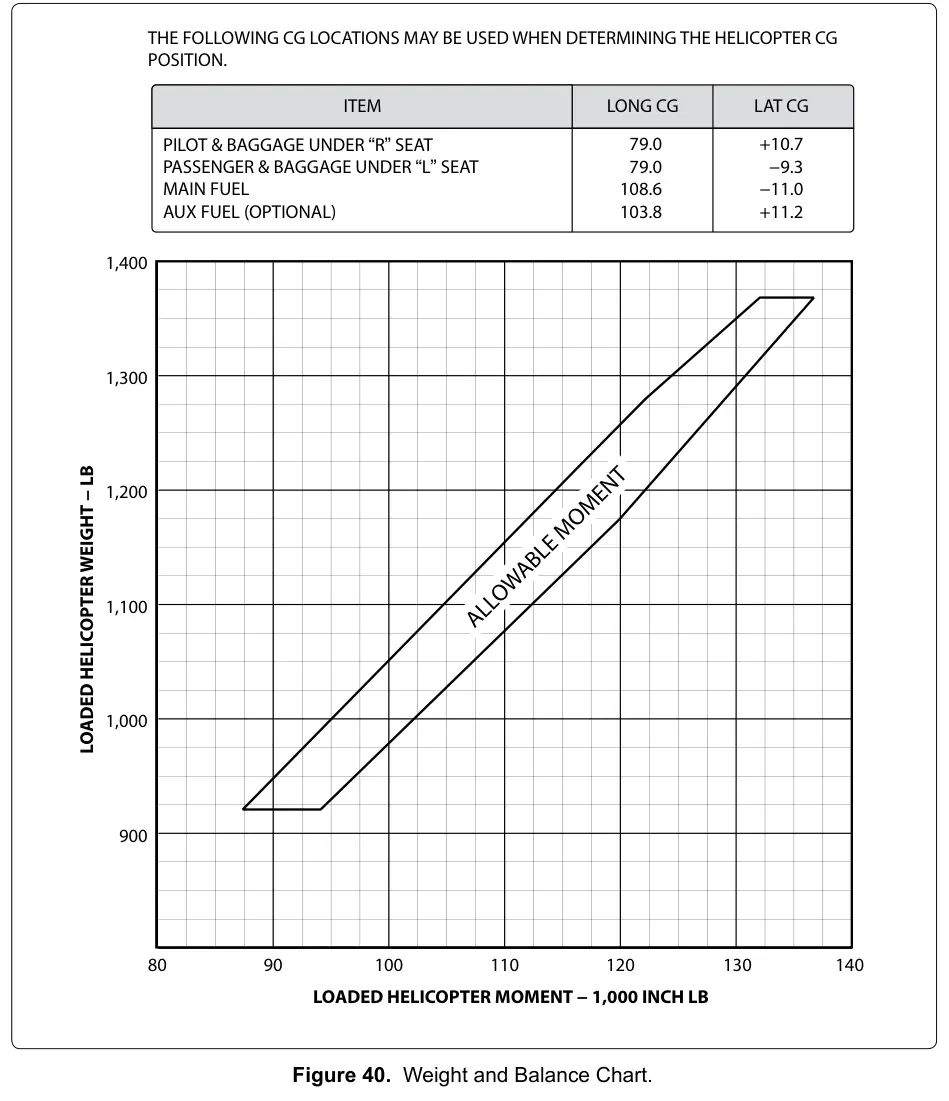

Figure 40: Weight and Balance Chart

1,400 1,300 1,200 1,100 1,000 900 80 90 100 110 120 130 140 LOADED HELICOPTER MOMENT − 1,000 INCH LB LOADED HELICOPTER WEIGHT − LB ITEM LONG CG LAT CG PILOT & BAGGAGE UNDER “R” SEAT PASSENGER & BAGGAGE UNDER “L” SEAT MAIN FUEL AUX FUEL (OPTIONAL) 79.0 79.0 108.6 103.8 +10.7 −9.3 −11.0 +11.2 THE FOLLOWING CG LOCATIONS MAY BE USED WHEN DETERMINING THE HELICOPTER CG POSITION. ALLOWABLE MOMENT
