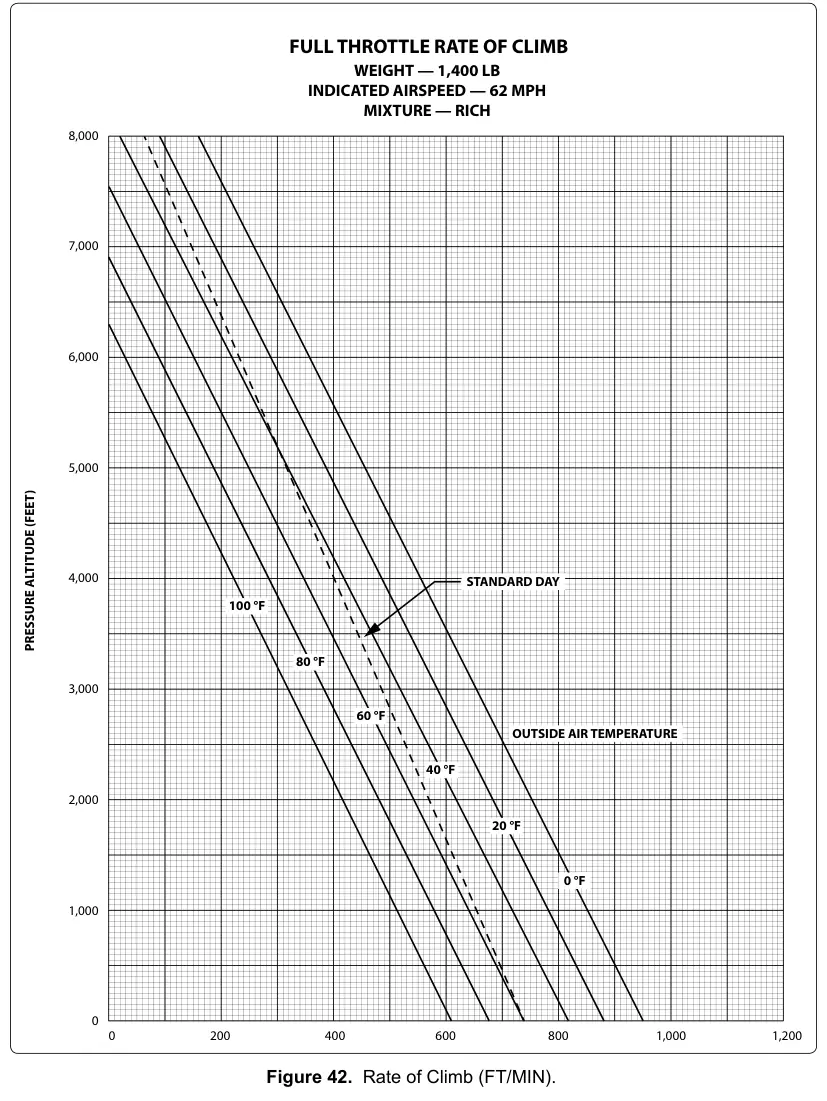

Figure 42: Rate of Climb (FT/MIN)

PRESSURE ALTITUDE (FEET) WEIGHT — 1,400 LB INDICATED AIRSPEED — 62 MPH MIXTURE — RICH 0 200 400 600 800 1,000 1,200 8,000 7,000 6,000 5,000 4,000 3,000 2,000 1,000 0 FULL THROTTLE RATE OF CLIMB STANDARD DAY OUTSIDE AIR TEMPERATURE 60 °F 20 °F 40 °F 80 °F 100 °F 0 °F
