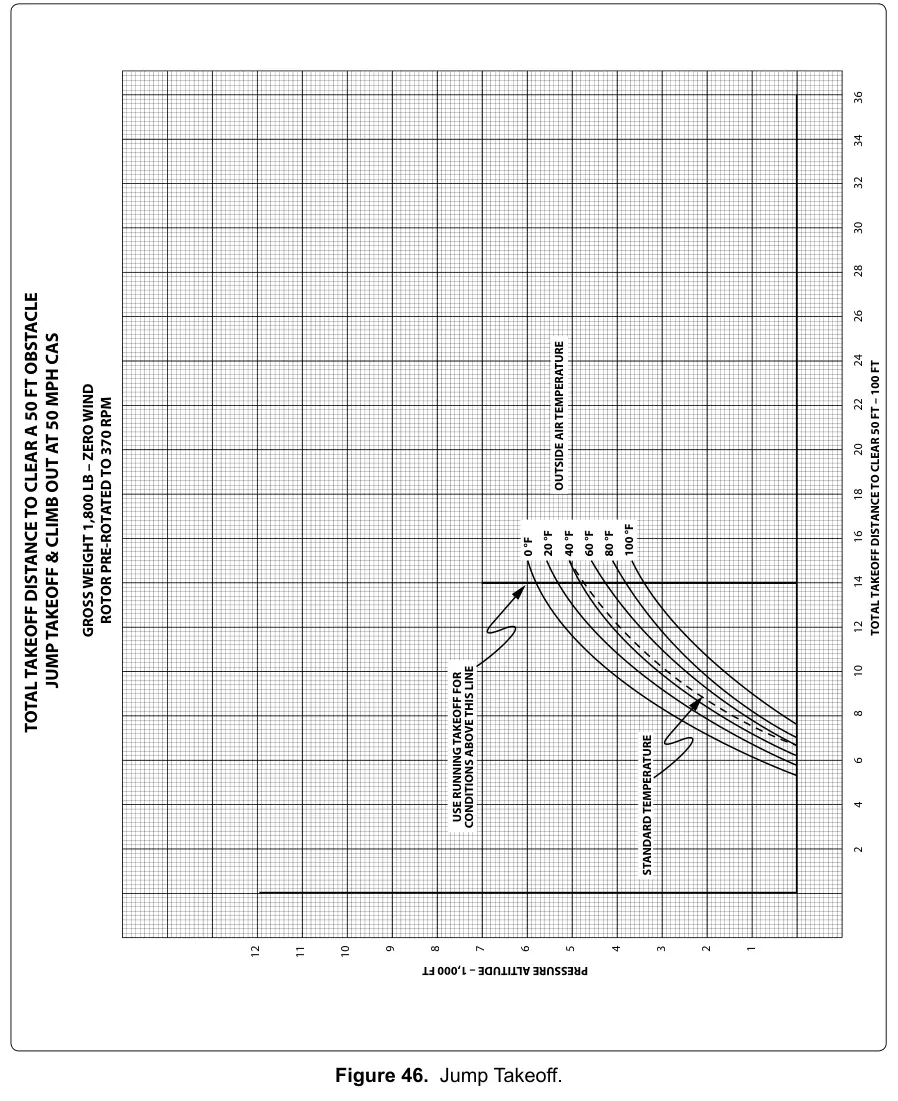

Figure 46: Jump Takeoff

TOTAL TAKEOFF DISTANCE TO CLEAR 50 FT – 100 FT OUTSIDE AIR TEMPERATURE 0 °F 20 °F 40 °F 60 °F 80 °F 100 °F STANDARD TEMPERATURE USE RUNNING TAKEOFF FOR CONDITIONS ABOVE THIS LINE TOTAL TAKEOFF DISTANCE TO CLEAR A 50 FT OBSTACLE JUMP TAKEOFF & CLIMB OUT AT 50 MPH CAS GROSS WEIGHT 1,800 LB – ZERO WIND ROTOR PRE-ROTATED TO 370 RPM PRESSURE ALTITUDE – 1,000 FT 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 12 11 10 9 8 7 6 5 4 3 2 1
