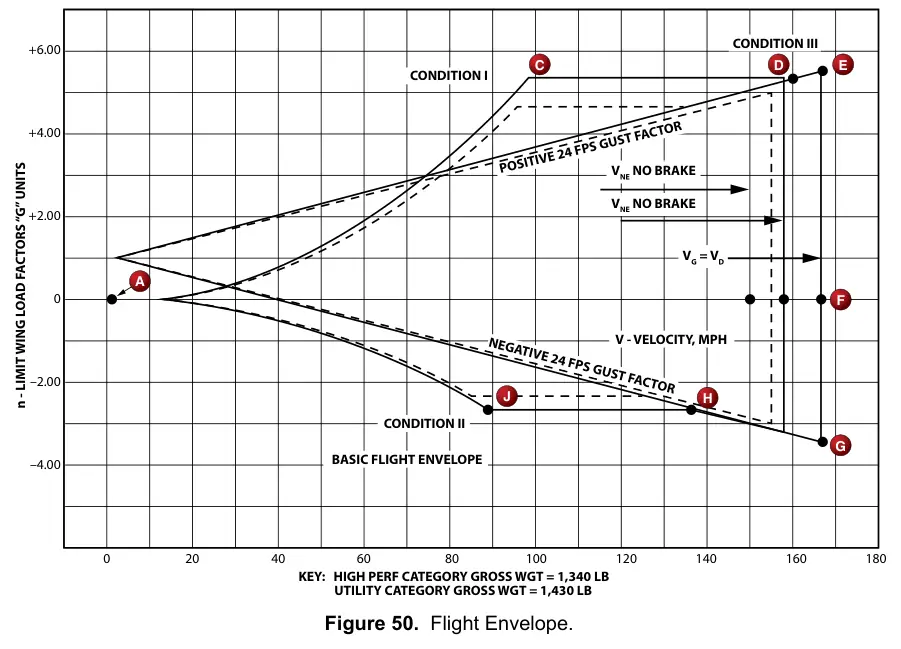

Figure 50: Flight Envelope

+6.00 +4.00 +2.00 0 –2.00 –4.00 CONDITION I VNE NO BRAKE VNE NO BRAKE VG = VD POSITIVE 24 FPS GUST FACTOR BASIC FLIGHT ENVELOPE KEY: HIGH PERF CATEGORY GROSS WGT = 1,340 LB UTILITY CATEGORY GROSS WGT = 1,430 LB CONDITION II V - VELOCITY, MPH CONDITION III A C D E F G J H 0 20 80 100 120 140 160 180 n - LIMIT WING LOAD FACTORS “G” UNITS 40 60 NEGATIVE 24 FPS GUST FACTOR
