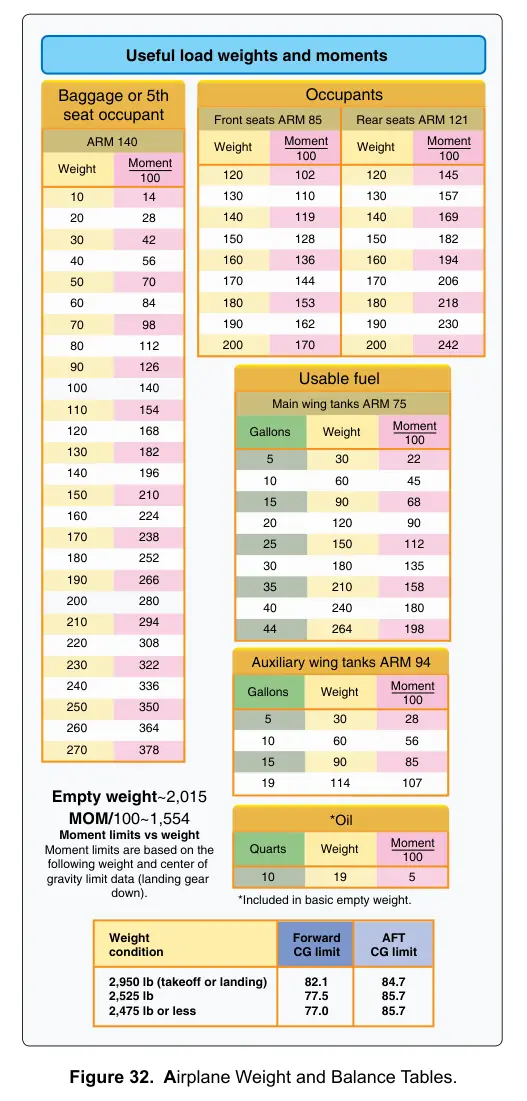

Figure 32: Airplane Weight and Balance Tables

Useful load weights and moments Occupants Front seats ARM 85 Rear seats ARM 121 Weight 120 130 140 150 160 170 180 190 200 102 110 119 128 136 144 153 162 170 120 130 140 150 160 170 180 190 200 145 157 169 182 194 206 218 230 242 Moment 100 Weight Moment 100 Baggage or 5th seat occupant ARM 140 Weight 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 14 28 42 56 70 84 98 112 126 140 154 168 182 196 210 224 238 252 266 280 294 308 322 336 350 364 378 Moment 100 Usable fuel Main wing tanks ARM 75 Gallons 5 10 15 20 25 30 35 40 44 30 60 90 120 150 180 210 240 264 22 45 68 90 112 135 158 180 198 Weight Moment 100 Empty weight~2,015 MOM/100~1,554 Moment limits vs weight Moment limits are based on the following weight and center of gravity limit data (landing gear down). Auxiliary wing tanks ARM 94 Gallons 5 10 15 19 30 60 90 114 28 56 85 107 Weight Moment 100 *Oil Quarts 10 *Included in basic empty weight. 19 5 Weight Moment 100 Weight condition 2,950 lb (takeoff or landing) 2,525 lb 2,475 lb or less Forward CG limit 82.1 77.5 77.0 AFT CG limit 84.7 85.7 85.7
