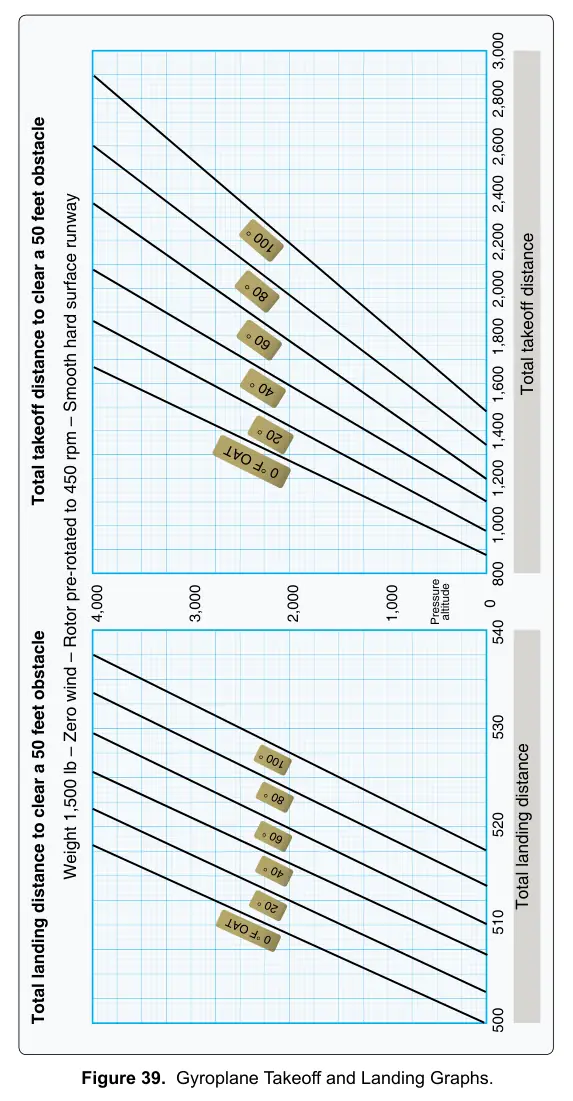

Figure 39: Gyroplane Takeoff and Landing Graphs
Airman Knowledge Testing Supplement for Sport Pilot, Recreational Pilot, Remote Pilot, and Private PilotOfficial PDF RPARPHRPGPATPHTPOTPARPRHPROPOLPBHPBGPLAPPPPWSUAG
Practice
Sign in to practice with this figureText in this figure
Total landing distance Total landing distance to clear a 50 feet obstacle 500 510 520 530 540 0 °F OAT 20 ° 40 ° 60 ° 80 ° 100 ° Pressure altitude 4,000 3,000 2,000 1,000 0 Total takeoff distance to clear a 50 feet obstacle 800 1,000 1,200 1,400 1,600 1,800 2,000 2,200 2,400 2,600 2,800 3,000 0 °F OAT 20 ° 40 ° 60 ° 80 ° 100 ° Weight 1,500 lb – Zero wind – Rotor pre-rotated to 450 rpm – Smooth hard surface runway Total takeoff distance
