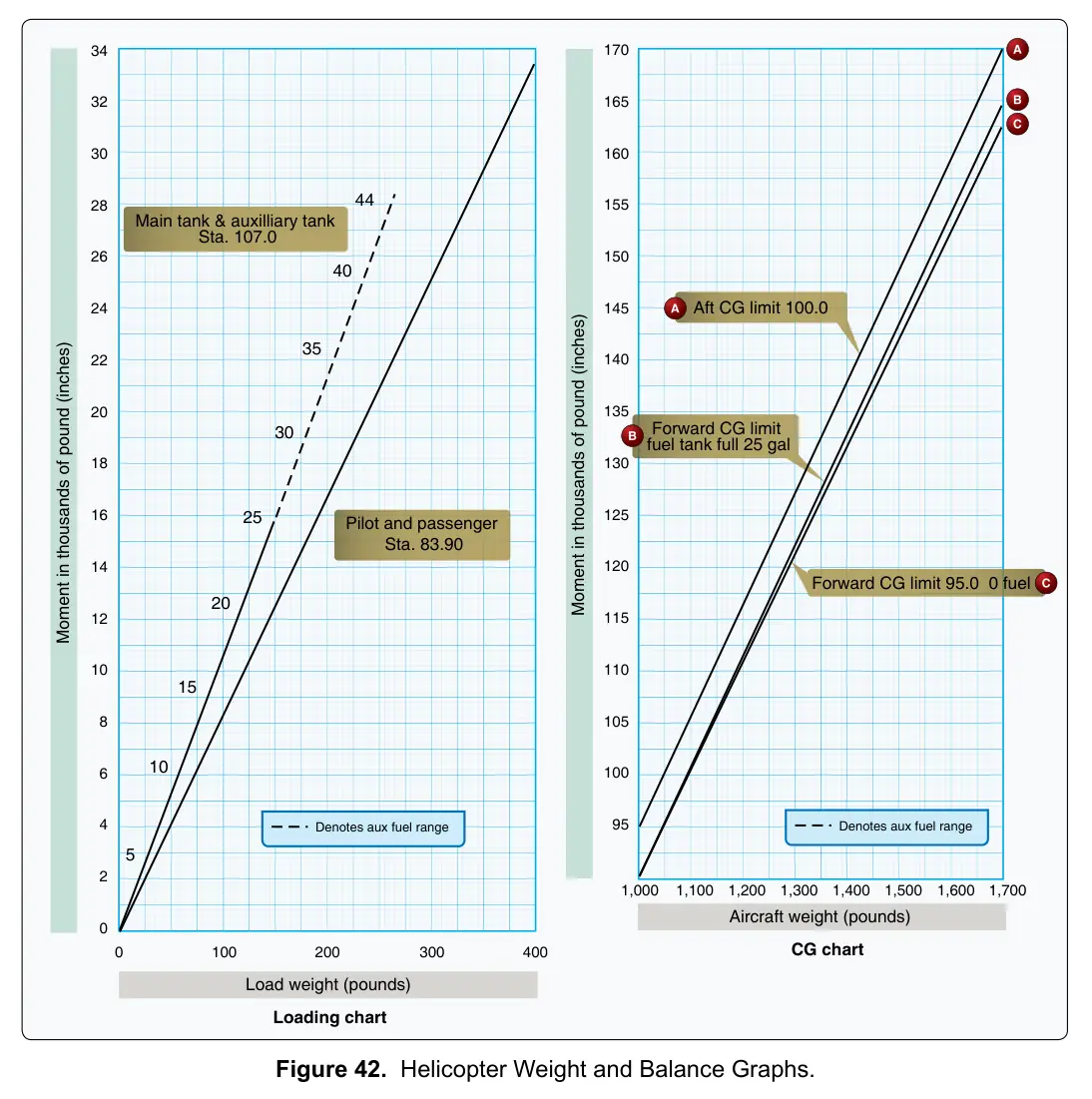

Figure 42: Helicopter Weight and Balance Graphs
Airman Knowledge Testing Supplement for Sport Pilot, Recreational Pilot, Remote Pilot, and Private PilotOfficial PDF RPARPHRPGPATPHTPOTPARPRHPROPOLPBHPBGPLAPPPPWSUAG
Practice
Sign in to practice with this figureText in this figure
34 32 30 28 26 24 22 20 18 16 14 12 10 8 6 4 2 0 Load weight (pounds) Loading chart Moment in thousands of pound (inches) Main tank & auxilliary tank Sta. 107.0 Pilot and passenger Sta. 83.90 5 10 15 20 25 30 35 40 44 Denotes aux fuel range 0 100 200 300 400 Denotes aux fuel range 170 165 160 155 150 145 140 135 130 125 120 115 110 105 100 95 Aircraft weight (pounds) CG chart Moment in thousands of pound (inches) Forward CG limit fuel tank full 25 gal Aft CG limit 100.0 Forward CG limit 95.0 0 fuel 1,000 1,100 1,200 1,300 1,400 1,500 1,600 1,700 A A B B C C
