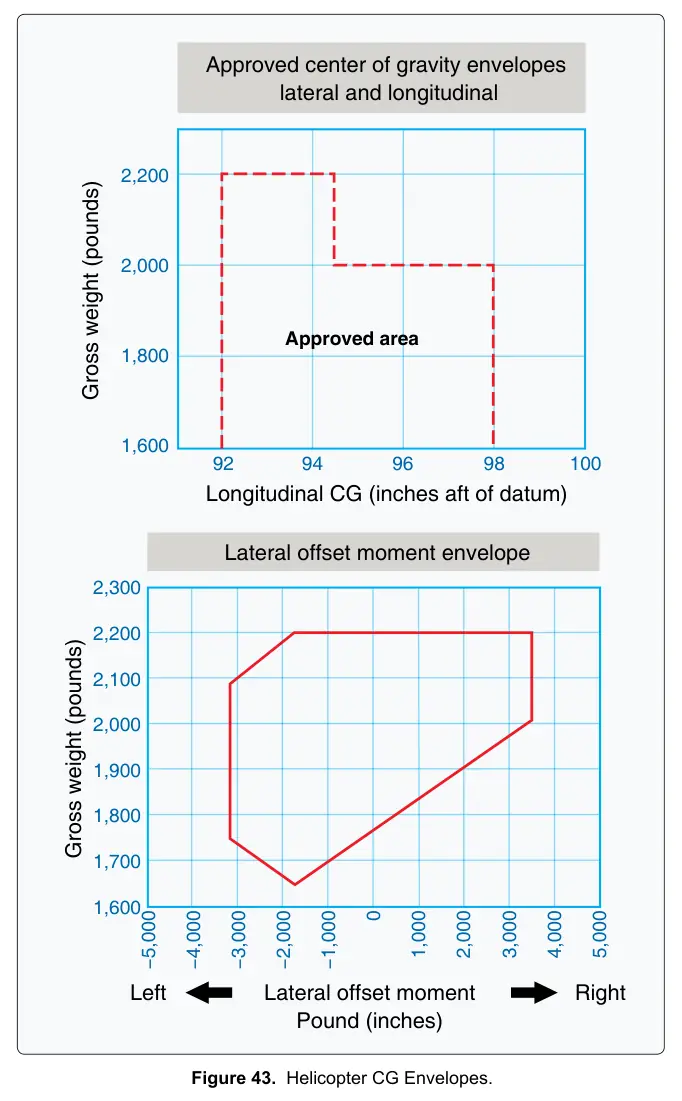

Figure 43: Helicopter CG Envelopes
Airman Knowledge Testing Supplement for Sport Pilot, Recreational Pilot, Remote Pilot, and Private PilotOfficial PDF RPARPHRPGPATPHTPOTPARPRHPROPOLPBHPBGPLAPPPPWSUAG
Practice
Sign in to practice with this figureText in this figure
−5,000 −4,000 −3,000 −2,000 −1,000 0 1,000 2,000 3,000 4,000 5,000 2,300 2,200 2,100 2,000 1,900 1,800 1,700 1,600 Lateral offset moment envelope Gross weight (pounds) Left Lateral offset moment Right Pound (inches) 92 94 96 98 100 2,200 2,000 1,800 1,600 Approved center of gravity envelopes lateral and longitudinal Gross weight (pounds) Longitudinal CG (inches aft of datum) Approved area
