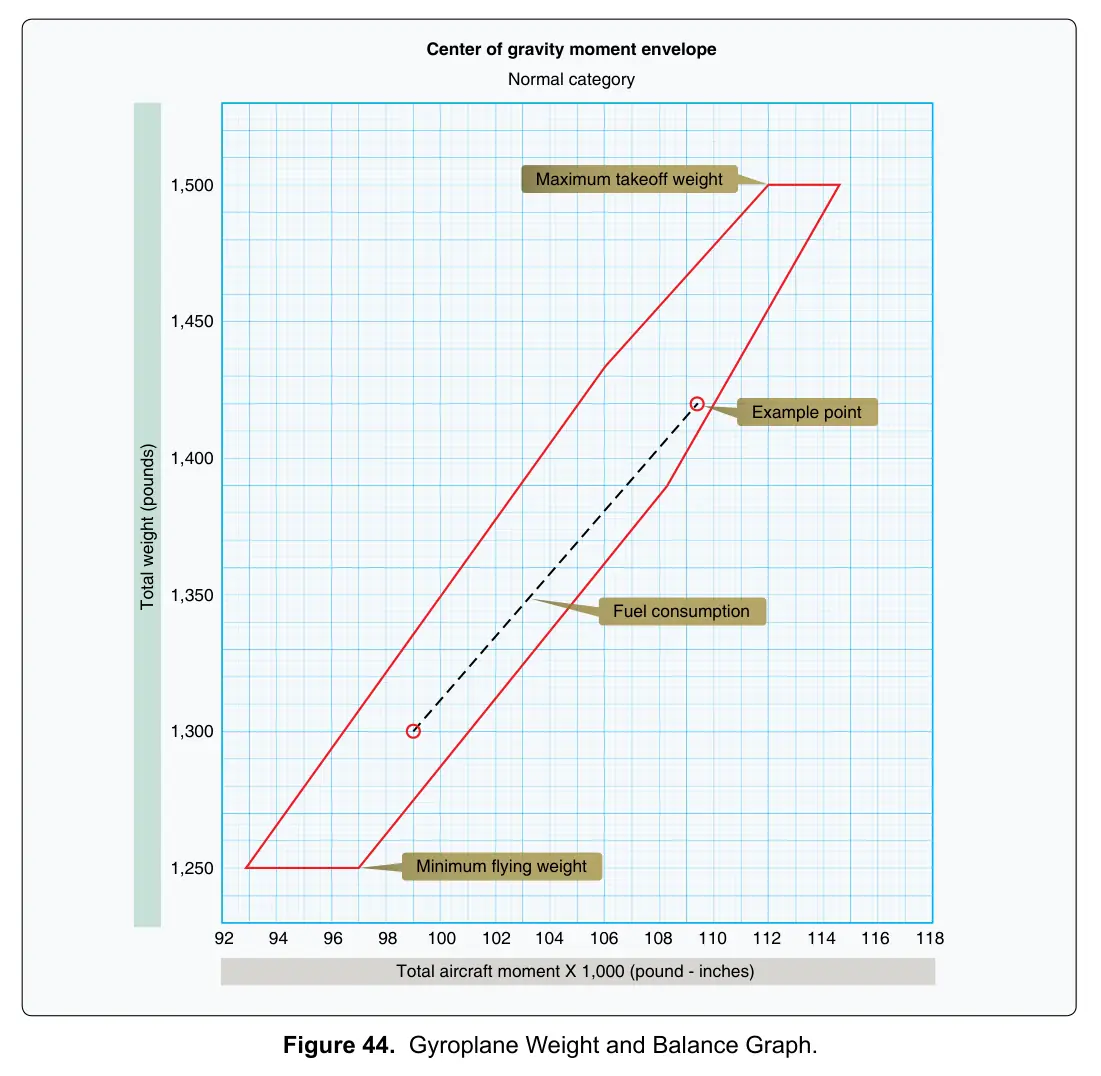

Figure 44: Gyroplane Weight and Balance Graph

1,500 1,450 1,400 1,350 1,300 1,250 92 94 96 98 100 102 104 106 108 110 112 114 116 118 Total aircraft moment X 1,000 (pound - inches) Center of gravity moment envelope Normal category Total weight (pounds) Maximum takeoff weight Example point Fuel consumption Minimum flying weight
