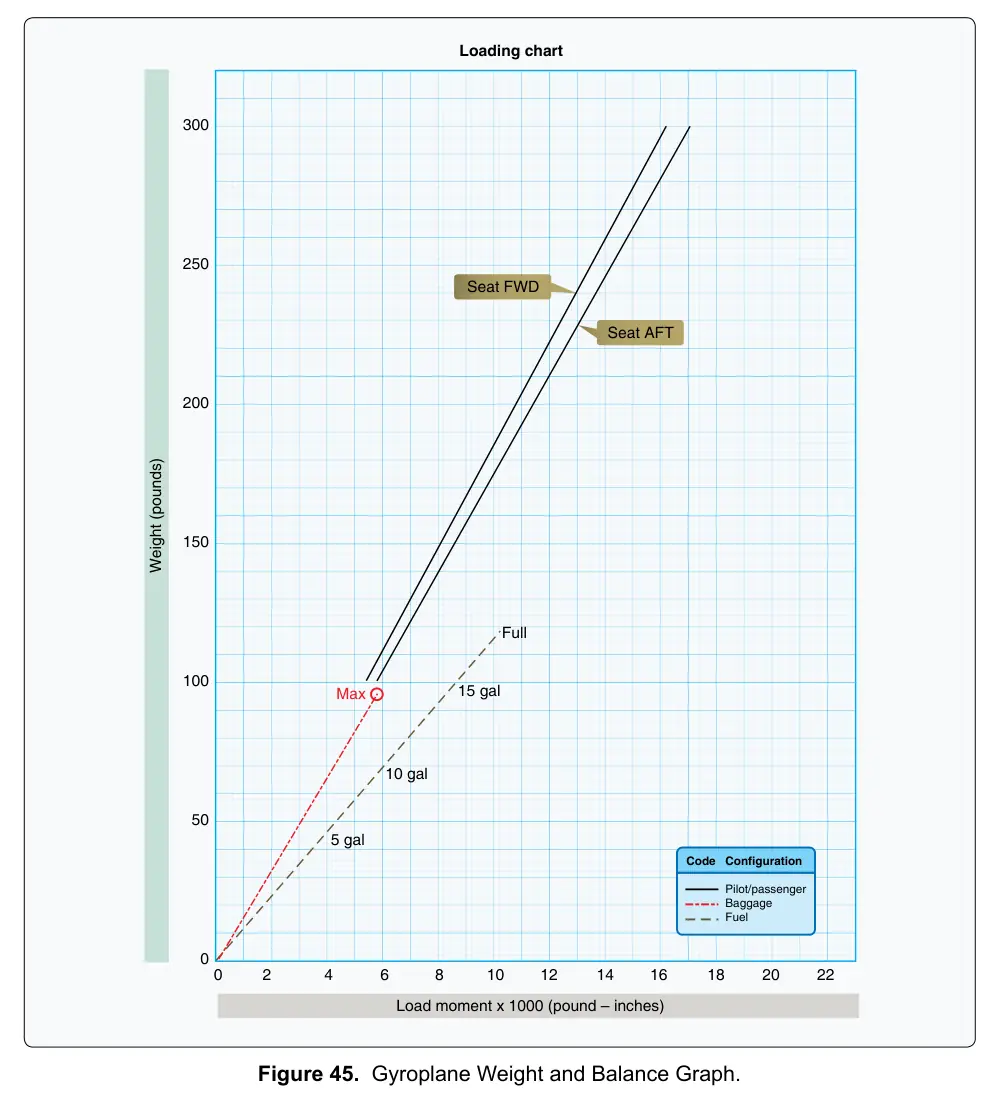

Figure 45: Gyroplane Weight and Balance Graph
Airman Knowledge Testing Supplement for Sport Pilot, Recreational Pilot, Remote Pilot, and Private PilotOfficial PDF RPARPHRPGPATPHTPOTPARPRHPROPOLPBHPBGPLAPPPPWSUAG
Practice
Sign in to practice with this figureText in this figure
300 250 200 150 100 50 0 0 2 4 6 8 10 12 14 16 18 20 22 Load moment x 1000 (pound – inches) Loading chart Weight (pounds) Seat FWD Seat AFT 5 gal 10 gal 15 gal Max Full Code Configuration Pilot/passenger Baggage Fuel
