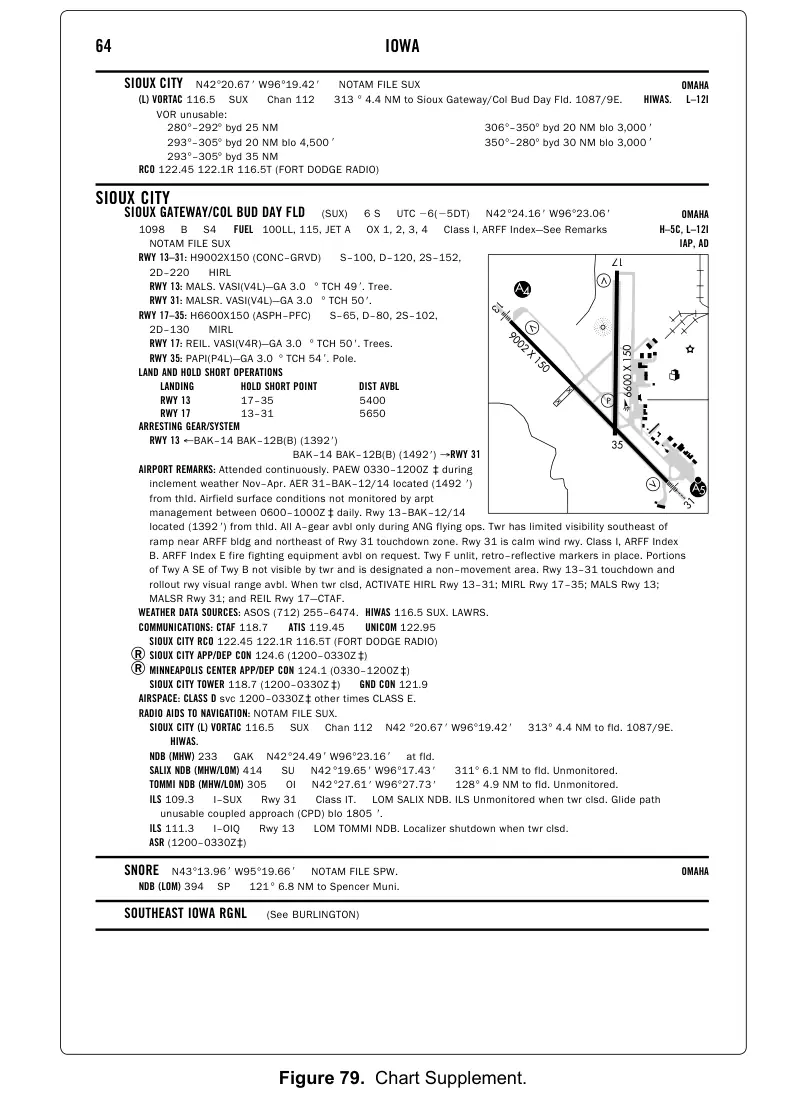

Figure 79: Chart Supplement

SIOUX CITY N42°20.67 W96°19.42 NOTAM FILE SUX OMAHA (L) VORTAC 116.5 SUX Chan 112 313 ° 4.4 NM to Sioux Gateway/Col Bud Day Fld. 1087/9E. HIWAS. L–12I VOR unusable: 280°–292° byd 25 NM 293°–305° byd 20 NM blo 4,500 293°–305° byd 35 NM 306°–350° byd 20 NM blo 3,000 350°–280° byd 30 NM blo 3,000 RCO 122.45 122.1R 116.5T (FORT DODGE RADIO) SIOUX CITY SIOUX GATEWAY/COL BUD DAY FLD (SUX) 6 S UTC 6( 5DT) N42°24.16 W96°23.06 OMAHA 1098 B S4 FUEL 100LL, 115, JET A OX 1, 2, 3, 4 Class I, ARFF Index—See Remarks H–5C, L–12I NOTAM FILE SUX IAP, AD RWY 13–31: H9002X150 (CONC–GRVD) S–100, D–120, 2S–152, 2D–220 HIRL RWY 13: MALS. VASI(V4L)—GA 3.0 ° TCH 49 . Tree. RWY 31: MALSR. VASI(V4L)—GA 3.0 ° TCH 50 . RWY 17–35: H6600X150 (ASPH–PFC) S–65, D–80, 2S–102, 2D–130 MIRL RWY 17: REIL. VASI(V4R)—GA 3.0 ° TCH 50 . Trees. RWY 35: PAPI(P4L)—GA 3.0 ° TCH 54 . Pole. LAND AND HOLD SHORT OPERATIONS LANDING HOLD SHORT POINT DIST AVBL RWY 13 17–35 5400 RWY 17 13–31 5650 ARRESTING GEAR/SYSTEM RWY 13 ←BAK–14 BAK–12B(B) (1392 ) BAK–14 BAK–12B(B) (1492 ) →RWY 31 AIRPORT REMARKS: Attended continuously. PAEW 0330–1200Z ‡ during inclement weather Nov–Apr. AER 31–BAK–12/14 located (1492 ) from thld. Airfield surface conditions not monitored by arpt management between 0600–1000Z ‡ daily. Rwy 13–BAK–12/14 located (1392 ) from thld. All A–gear avbl only during ANG flying ops. Twr has limited visibility southeast of ramp near ARFF bldg and northeast of Rwy 31 touchdown zone. Rwy 31 is calm wind rwy. Class I, ARFF…
