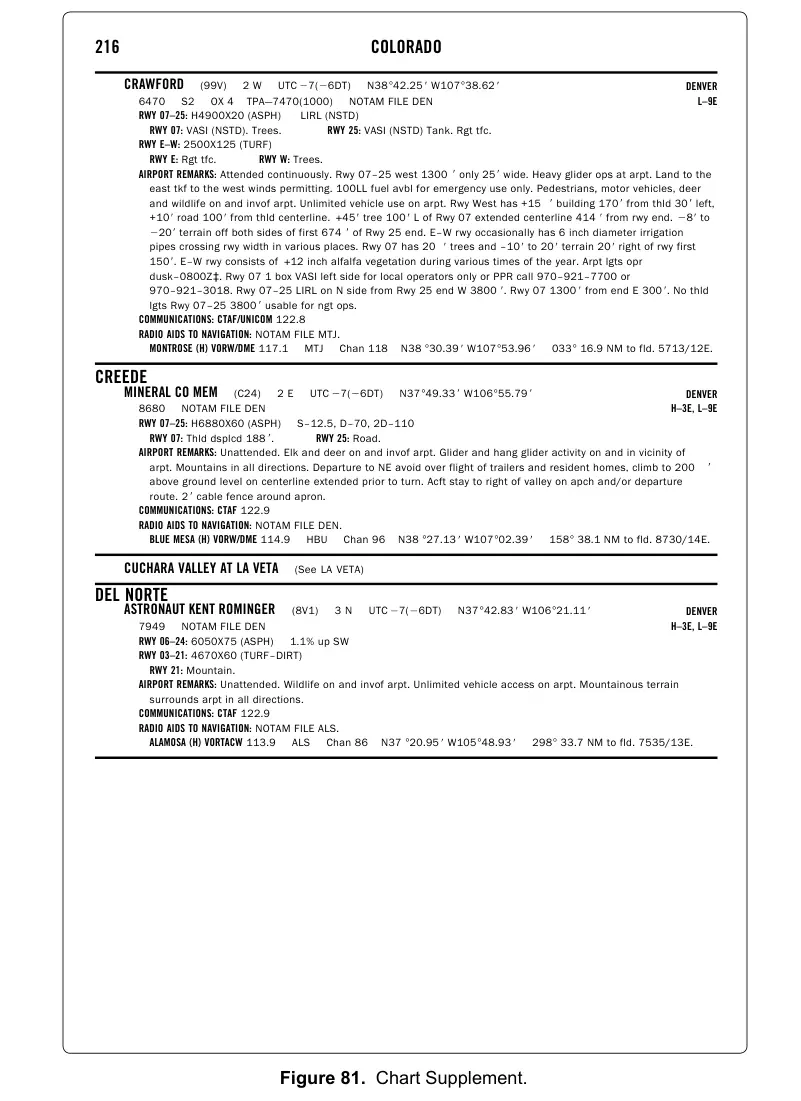

Figure 81: Chart Supplement

CRAWFORD (99V) 2 W UTC 7( 6DT) N38°42.25 W107°38.62 DENVER 6470 S2 OX 4 TPA—7470(1000) NOTAM FILE DEN L–9E RWY 07–25: H4900X20 (ASPH) LIRL (NSTD) RWY 07: VASI (NSTD). Trees. RWY 25: VASI (NSTD) Tank. Rgt tfc. RWY E–W: 2500X125 (TURF) RWY E: Rgt tfc. RWY W: Trees. AIRPORT REMARKS: Attended continuously. Rwy 07–25 west 1300 only 25 wide. Heavy glider ops at arpt. Land to the east tkf to the west winds permitting. 100LL fuel avbl for emergency use only. Pedestrians, motor vehicles, deer and wildlife on and invof arpt. Unlimited vehicle use on arpt. Rwy West has +15 building 170 from thld 30 left, +10 road 100 from thld centerline. +45 tree 100 L of Rwy 07 extended centerline 414 from rwy end. 8 to 20 terrain off both sides of first 674 of Rwy 25 end. E–W rwy occasionally has 6 inch diameter irrigation pipes crossing rwy width in various places. Rwy 07 has 20 trees and –10 to 20 terrain 20 right of rwy first 150 . E–W rwy consists of +12 inch alfalfa vegetation during various times of the year. Arpt lgts opr dusk–0800Z‡. Rwy 07 1 box VASI left side for local operators only or PPR call 970–921–7700 or 970–921–3018. Rwy 07–25 LIRL on N side from Rwy 25 end W 3800 . Rwy 07 1300 from end E 300 . No thld lgts Rwy 07–25 3800 usable for ngt ops. COMMUNICATIONS: CTAF/UNICOM 122.8 RADIO AIDS TO NAVIGATION: NOTAM FILE MTJ. MONTROSE (H) VORW/DME 117.1 MTJ Chan 118 N38 °30.39 W107°53.96 033° 16.9 NM to fld. 5713/12E. CREEDE MINERAL CO MEM (C24) 2 E UTC 7( 6DT) N37°49.33 W106°55.79 DENVER…
