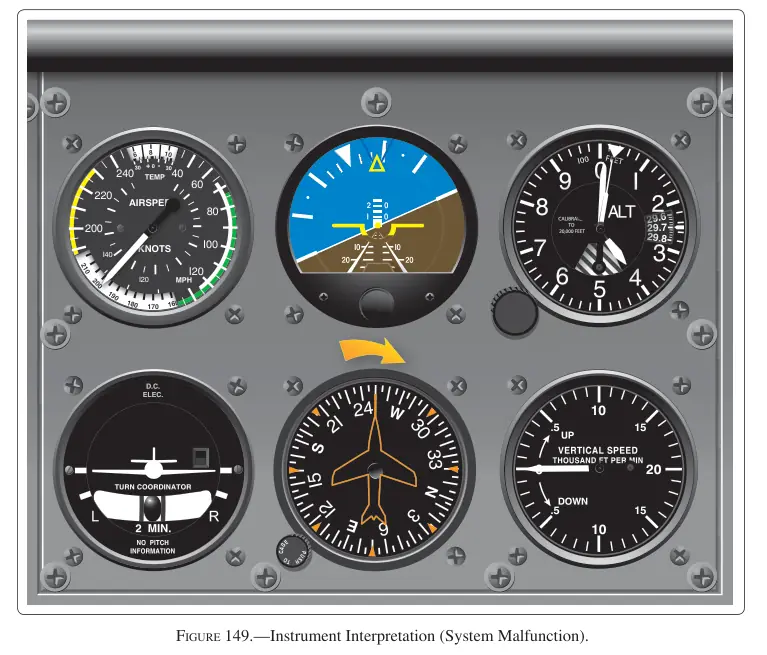

Figure 149: Instrument Interpretation (System Malfunction)
Airman Knowledge Testing Supplement for Instrument RatingOfficial PDF IRAIRHIPLIPIIFPFIIFIHAIFHIFIGI
Practice
Sign in to practice with this figureText in this figure
29.8 29.7 29.6 10 0 20 15 .5 .5 15 10 170 160 190 180 200 210 6 8 10 MPH TEMP 30 30 0 + - AIRSPEED KNOTS 240 40 60 220 200 80 I00 I20 I20 I40
