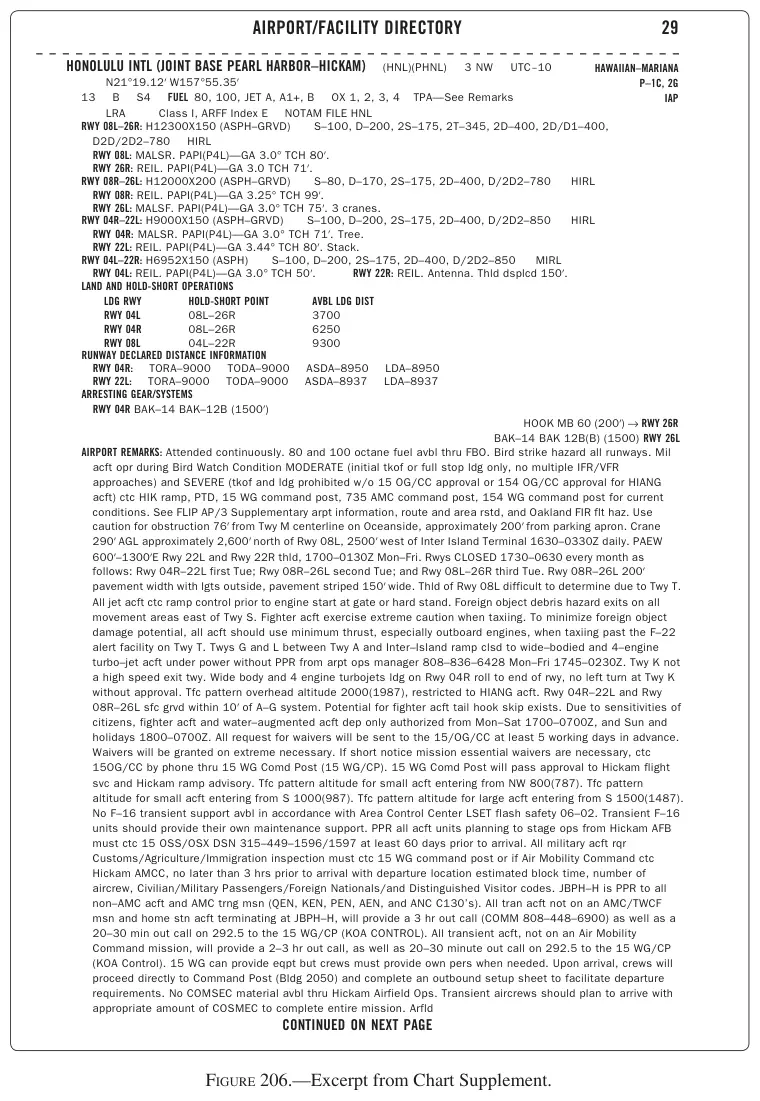

Figure 206: Excerpt from Chart Supplement

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – HONOLULU INTL (JOINT BASE PEARL HARBOR–HICKAM) (HNL)(PHNL) 3 NW UTC–10 HAWAIIAN–MARIANA P–1C, 2G N21°19.12′ W157°55.35′ 13 B S4 FUEL 80, 100, JET A, A1+, B OX 1, 2, 3, 4 TPA—See Remarks IAP LRA Class I, ARFF Index E NOTAM FILE HNL RWY 08L–26R: H12300X150 (ASPH–GRVD) S–100, D–200, 2S–175, 2T–345, 2D–400, 2D/D1–400, D2D/2D2–780 HIRL RWY 08L: MALSR. PAPI(P4L)—GA 3.0° TCH 80′. RWY 26R: REIL. PAPI(P4L)—GA 3.0 TCH 71′. RWY 08R–26L: H12000X200 (ASPH–GRVD) S–80, D–170, 2S–175, 2D–400, D/2D2–780 HIRL RWY 08R: REIL. PAPI(P4L)—GA 3.25° TCH 99′. RWY 26L: MALSF. PAPI(P4L)—GA 3.0° TCH 75′. 3 cranes. RWY 04R–22L: H9000X150 (ASPH–GRVD) S–100, D–200, 2S–175, 2D–400, D/2D2–850 HIRL RWY 04R: MALSR. PAPI(P4L)—GA 3.0° TCH 71′. Tree. RWY 22L: REIL. PAPI(P4L)—GA 3.44° TCH 80′. Stack. RWY 04L–22R: H6952X150 (ASPH) S–100, D–200, 2S–175, 2D–400, D/2D2–850 MIRL RWY 22R: REIL. Antenna. Thld dsplcd 150′. RWY 04L: REIL. PAPI(P4L)—GA 3.0° TCH 50′. LAND AND HOLD-SHORT OPERATIONS LDG RWY HOLD-SHORT POINT AVBL LDG DIST RWY 04L 08L–26R 3700 RWY 04R 08L–26R 6250 RWY 08L 04L–22R 9300 RUNWAY DECLARED DISTANCE INFORMATION RWY 04R: TORA–9000 TODA–9000 ASDA–8950 LDA–8950 RWY 22L: TORA–9000 TODA–9000 ASDA–8937 LDA–8937 ARRESTING GEAR/SYSTEMS RWY 04R BAK–14 BAK–12B (1500′) HOOK MB 60 (200′) → RWY 26R BAK–14 BAK 12B(B) (1500) RWY 26L AIRPORT REMARKS: Attended continuously. 80 and 100 octane fuel avbl thru FBO. Bird strike…
