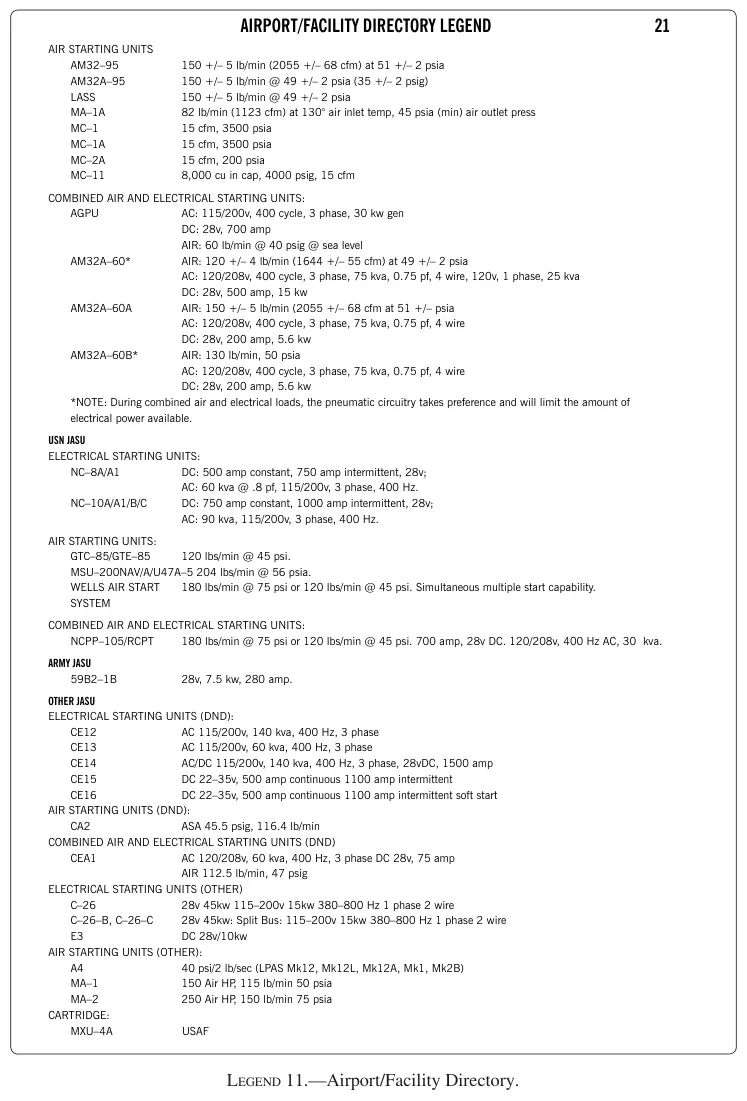

AIRPORT/FACILITY DIRECTORY LEGEND 21 AIR STARTING UNITS AM32–95 150 +/– 5 lb/min (2055 +/– 68 cfm) at 51 +/– 2 psia AM32A–95 150 +/– 5 lb/min @ 49 +/– 2 psia (35 +/– 2 psig) LASS 150 +/– 5 lb/min @ 49 +/– 2 psia MA–1A 82 lb/min (1123 cfm) at 130° air inlet temp, 45 psia (min) air outlet press MC–1 15 cfm, 3500 psia MC–1A 15 cfm, 3500 psia MC–2A 15 cfm, 200 psia MC–11 8,000 cu in cap, 4000 psig, 15 cfm COMBINED AIR AND ELECTRICAL STARTING UNITS: AGPU AC: 115/200v, 400 cycle, 3 phase, 30 kw gen DC: 28v, 700 amp AIR: 60 lb/min @ 40 psig @ sea level AM32A–60* AIR: 120 +/– 4 lb/min (1644 +/– 55 cfm) at 49 +/– 2 psia AC: 120/208v, 400 cycle, 3 phase, 75 kva, 0.75 pf, 4 wire, 120v, 1 phase, 25 kva DC: 28v, 500 amp, 15 kw AM32A–60A AIR: 150 +/– 5 lb/min (2055 +/– 68 cfm at 51 +/– psia AC: 120/208v, 400 cycle, 3 phase, 75 kva, 0.75 pf, 4 wire DC: 28v, 200 amp, 5.6 kw AM32A–60B* AIR: 130 lb/min, 50 psia AC: 120/208v, 400 cycle, 3 phase, 75 kva, 0.75 pf, 4 wire DC: 28v, 200 amp, 5.6 kw *NOTE: During combined air and electrical loads, the pneumatic circuitry takes preference and will limit the amount of electrical power available. USN JASU ELECTRICAL STARTING UNITS: NC–8A/A1 DC: 500 amp constant, 750 amp intermittent, 28v; AC: 60 kva @ .8 pf, 115/200v, 3 phase, 400 Hz. NC–10A/A1/B/C DC: 750 amp constant, 1000 amp intermittent, 28v; AC: 90 kva, 115/200v, 3 phase, 400 Hz. AIR STARTING UNITS: GTC–85/GTE–85 120 lbs/min @ 45 psi. MSU–200NAV/A/U47A–5 204 lbs/min @ 56 psia. WELLS AIR START 180…
