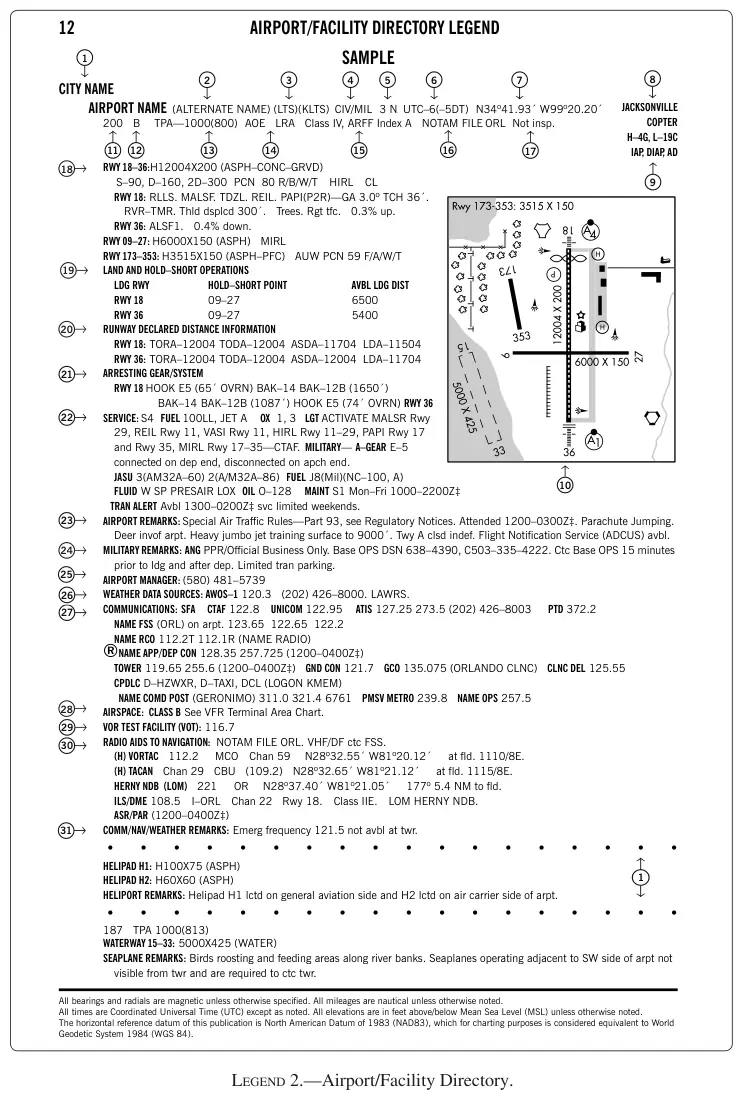

Legend 2: Airport/Facility Directory

12 AIRPORT/FACILITY DIRECTORY LEGEND SECTION 1: AIRPORT/FACILITY DIRECTORY LEGEND SAMPLE CITY NAME AIRPORT NAME (ALTERNATE NAME) (LTS)(KLTS) CIV/MIL 3 N UTC–6(–5DT) N34º41.93´ W99º20.20´ 200 B TPA—1000(800) AOE LRA Class IV, ARFF Index A NOTAM FILE ORL Not insp. RWY 18–36:H12004X200 (ASPH–CONC–GRVD) S–90, D–160, 2D–300 PCN 80 R/B/W/T HIRL CL RWY 18: RLLS. MALSF. TDZL. REIL. PAPI(P2R)—GA 3.0º TCH 36´. RVR–TMR. Thld dsplcd 300´. Trees. Rgt tfc. 0.3% up. RWY 36: ALSF1. 0.4% down. RWY 09–27: H6000X150 (ASPH) MIRL RWY 173–353: H3515X150 (ASPH–PFC) AUW PCN 59 F/A/W/T LAND AND HOLD–SHORT OPERATIONS LDG RWY HOLD–SHORT POINT AVBL LDG DIST RWY 18 09–27 6500 RWY 36 09–27 5400 RUNWAY DECLARED DISTANCE INFORMATION RWY 18: TORA–12004 TODA–12004 ASDA–11704 LDA–11504 RWY 36: TORA–12004 TODA–12004 ASDA–12004 LDA–11704 ARRESTING GEAR/SYSTEM RWY 18 HOOK E5 (65´ OVRN) BAK–14 BAK–12B (1650´) BAK–14 BAK–12B (1087´) HOOK E5 (74´ OVRN) RWY 36 SERVICE: S4 FUEL 100LL, JET A OX 1, 3 LGT ACTIVATE MALSR Rwy 29, REIL Rwy 11, VASI Rwy 11, HIRL Rwy 11–29, PAPI Rwy 17 and Rwy 35, MIRL Rwy 17–35—CTAF. MILITARY— A–GEAR E–5 connected on dep end, disconnected on apch end. JASU 3(AM32A–60) 2(A/M32A–86) FUEL J8(Mil)(NC–100, A) FLUID W SP PRESAIR LOX OIL O–128 MAINT S1 Mon–Fri 1000–2200Z‡ TRAN ALERT Avbl 1300–0200Z‡ svc limited weekends. AIRPORT REMARKS: Special Air Traffic Rules—Part 93, see Regulatory Notices. Attended 1200–0300Z‡. Parachute Jumping. Deer invof arpt. Heavy jumbo jet training surface to 9000´.…
