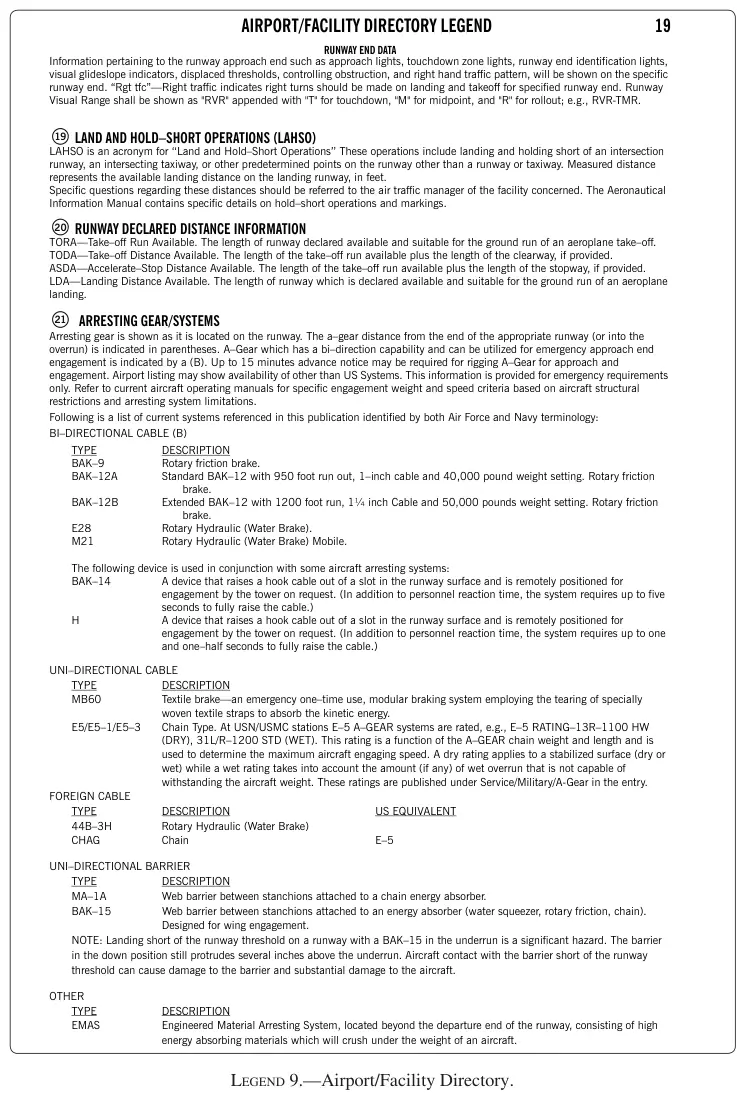

Legend 9: Airport/Facility Directory

AIRPORT/FACILITY DIRECTORY LEGEND 19 RUNWAY END DATA Information pertaining to the runway approach end such as approach lights, touchdown zone lights, runway end identification lights, visual glideslope indicators, displaced thresholds, controlling obstruction, and right hand traffic pattern, will be shown on the specific runway end. “Rgt tfc”—Right traffic indicates right turns should be made on landing and takeoff for specified runway end. Runway Visual Range shall be shown as "RVR" appended with "T" for touchdown, "M" for midpoint, and "R" for rollout; e.g., RVR-TMR. LAND AND HOLD–SHORT OPERATIONS (LAHSO) LAHSO is an acronym for ‘‘Land and Hold–Short Operations’’ These operations include landing and holding short of an intersection runway, an intersecting taxiway, or other predetermined points on the runway other than a runway or taxiway. Measured distance represents the available landing distance on the landing runway, in feet. Specific questions regarding these distances should be referred to the air traffic manager of the facility concerned. The Aeronautical Information Manual contains specific details on hold–short operations and markings. RUNWAY DECLARED DISTANCE INFORMATION TORA—Take–off Run Available. The length of runway declared available and suitable for the ground run of an aeroplane take–off. TODA—Take–off Distance Available. The length of the take–off run available plus the length of the clearway, if provided. ASDA—Accelerate–Stop Distance Available. The…
