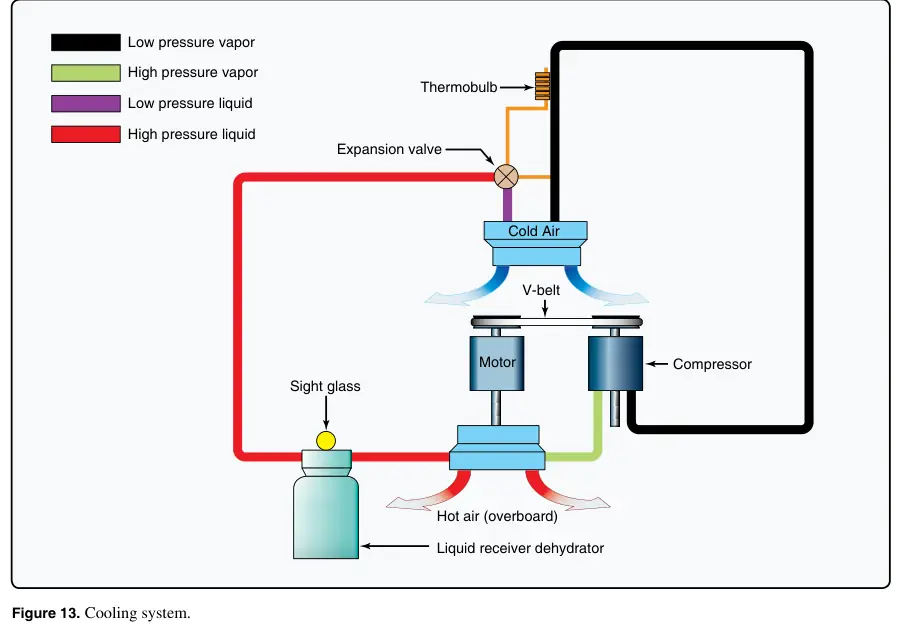

Figure 13: Cooling system
Airman Knowledge Testing Supplement for Aviation Maintenance Technician – General, Airframe, and Powerplant; and Parachute RiggerOfficial PDF AMA
Practice
Sign in to practice with this figureText in this figure
Cold Air Low pressure vapor High pressure vapor Low pressure liquid High pressure liquid Thermobulb Expansion valve Sight glass Hot air (overboard) Liquid receiver dehydrator V-belt Motor Compressor
