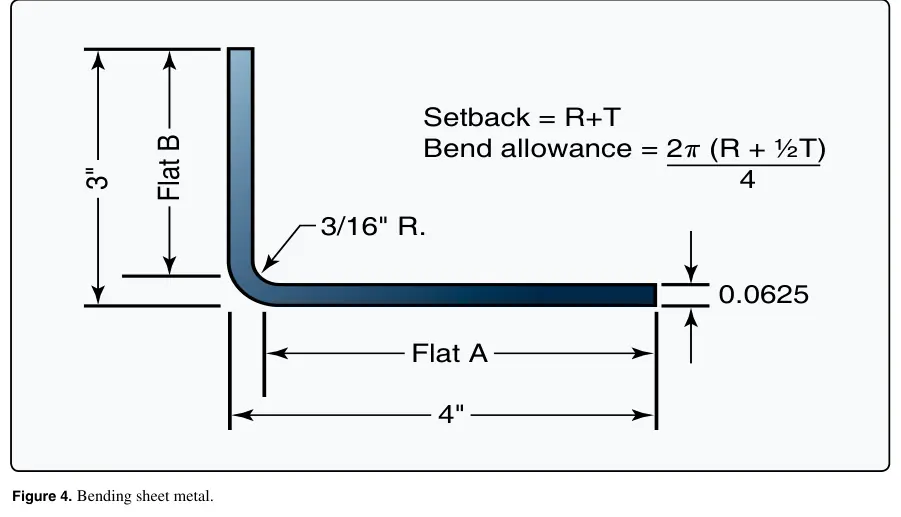

Figure 4: Bending sheet metal
Airman Knowledge Testing Supplement for Aviation Maintenance Technician – General, Airframe, and Powerplant; and Parachute RiggerOfficial PDF AMA
Practice
Sign in to practice with this figureText in this figure
3" Flat B 4" Flat A 0.0625 3/16" R. Setback = R+T Bend allowance = 2π (R + ½T) 4
