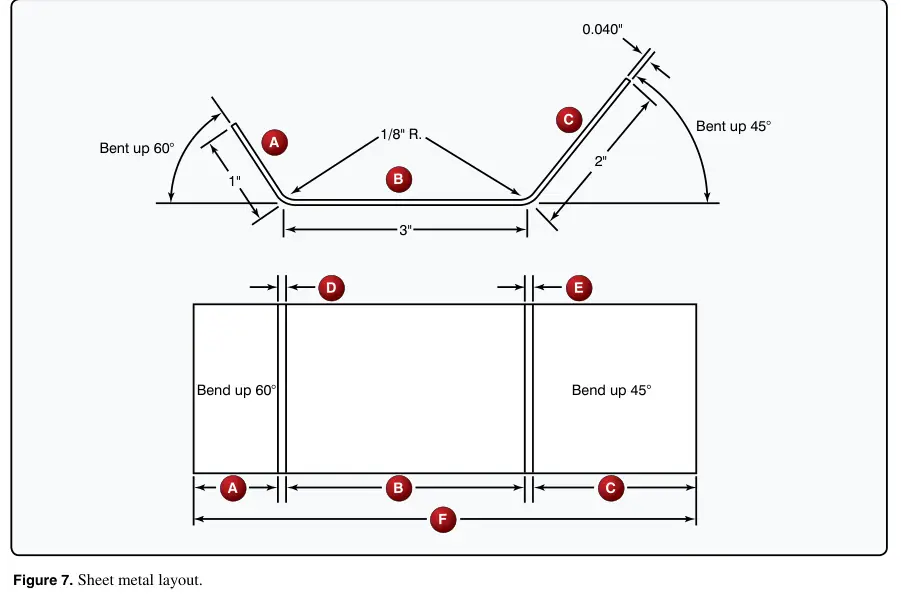

Figure 7: Sheet metal layout

Airman Knowledge Testing Supplement for Aviation Maintenance Technician – General, Airframe, and Powerplant; and Parachute RiggerOfficial PDF AMA

Practice

Text in this figure

A A B B D E F C C Bend up 60° Bent up 60° Bend up 45° Bent up 45° 3" 1" 0.040" 2" 1/8" R.
