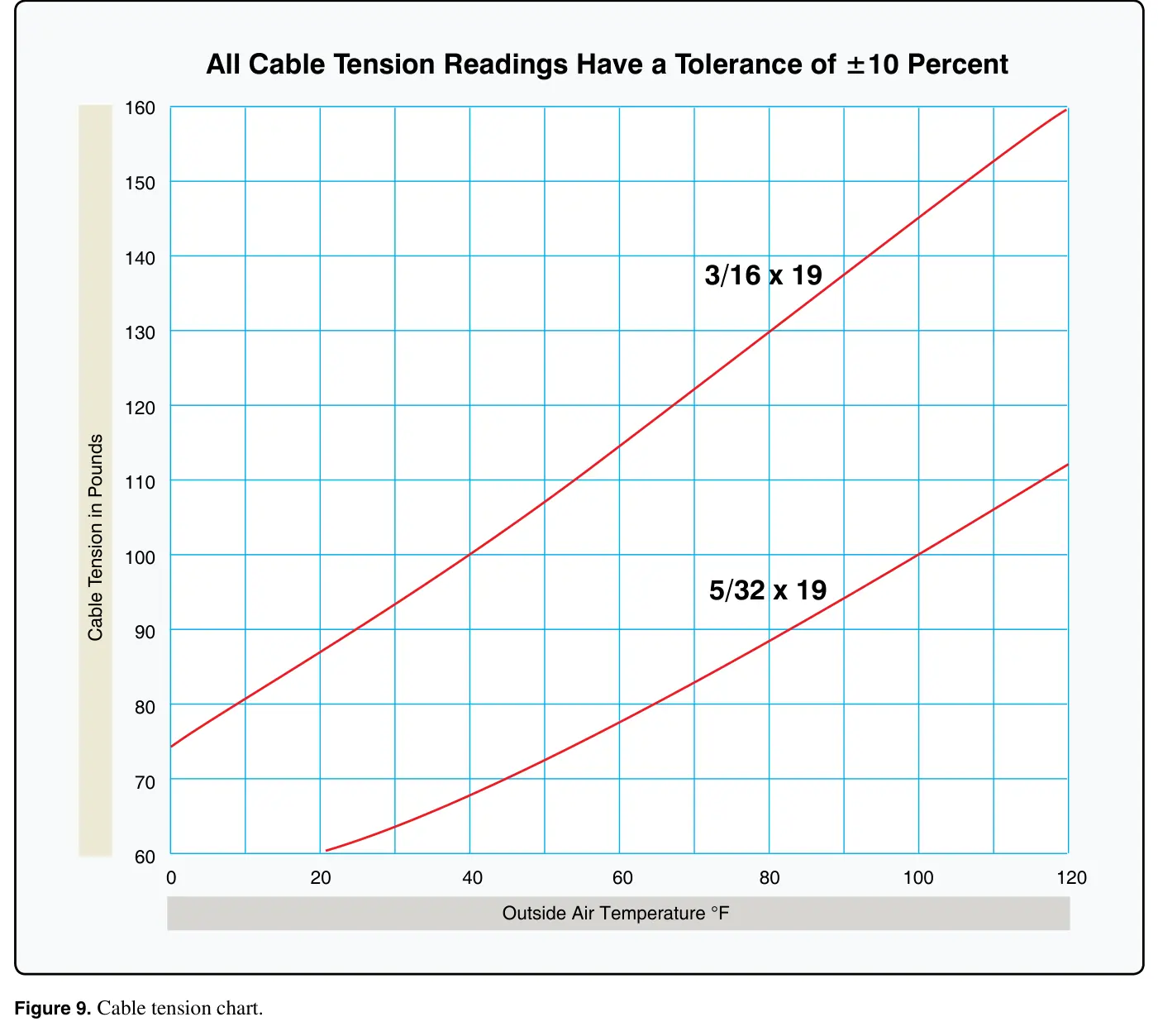

Figure 9: Cable tension chart
Airman Knowledge Testing Supplement for Aviation Maintenance Technician – General, Airframe, and Powerplant; and Parachute RiggerOfficial PDF AMA
Practice
Sign in to practice with this figureText in this figure
All Cable Tension Readings Have a Tolerance of ±10 Percent 3/16 x 19 5/32 x 19 160 150 140 130 120 110 100 90 80 70 60 0 20 40 60 80 100 120 Outside Air Temperature °F Cable Tension in Pounds
