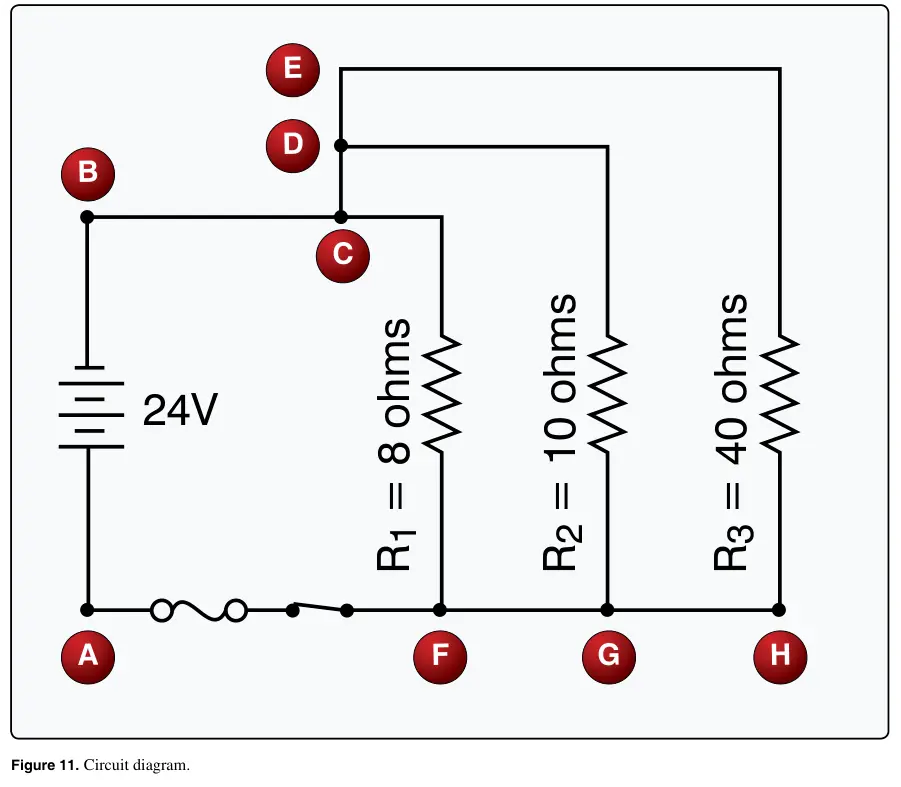

Figure 11: Circuit diagram
Airman Knowledge Testing Supplement for Aviation Maintenance Technician – General, Airframe, and Powerplant; and Parachute RiggerOfficial PDF AMG
Practice
Sign in to practice with this figureText in this figure
R1 = 8 ohms R2 = 10 ohms R3 = 40 ohms 24V A B C D E F G H
