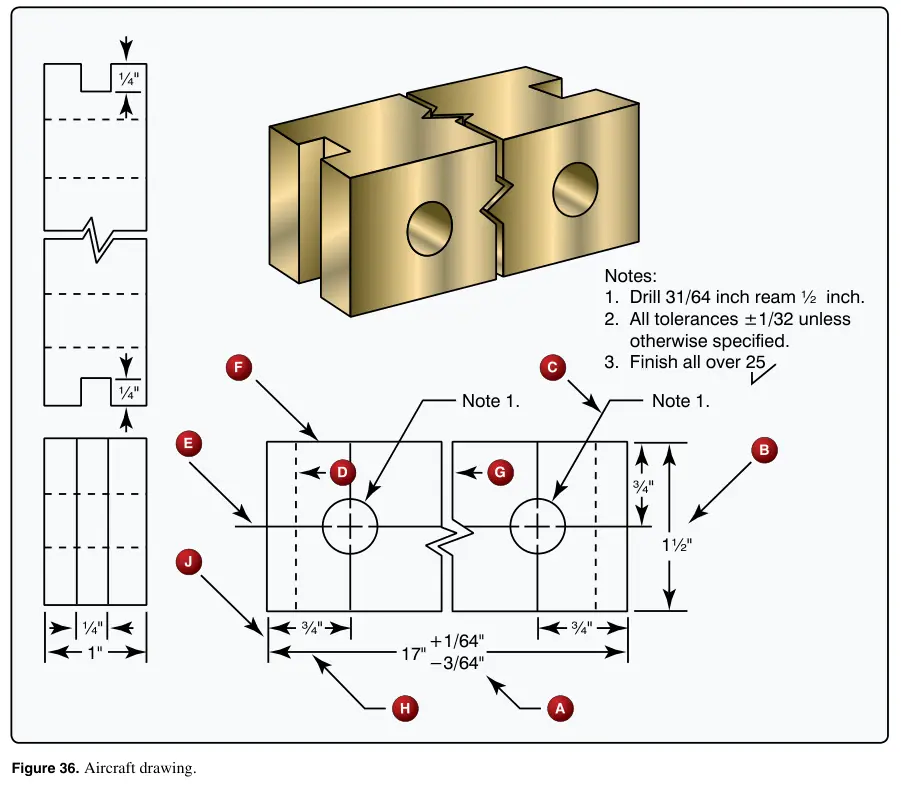

Figure 36: Aircraft drawing

Airman Knowledge Testing Supplement for Aviation Maintenance Technician – General, Airframe, and Powerplant; and Parachute RiggerOfficial PDF AMG

Practice

Text in this figure

Note 1. ¾" 17" ¼" 1" ¼" ¼" ¾" ¾" 1½" Note 1. +1/64" −3/64" F E D G J C B A H Notes: 1. Drill 31/64 inch ream ½ inch. 2. All tolerances ±1/32 unless otherwise specified. 3. Finish all over 25
