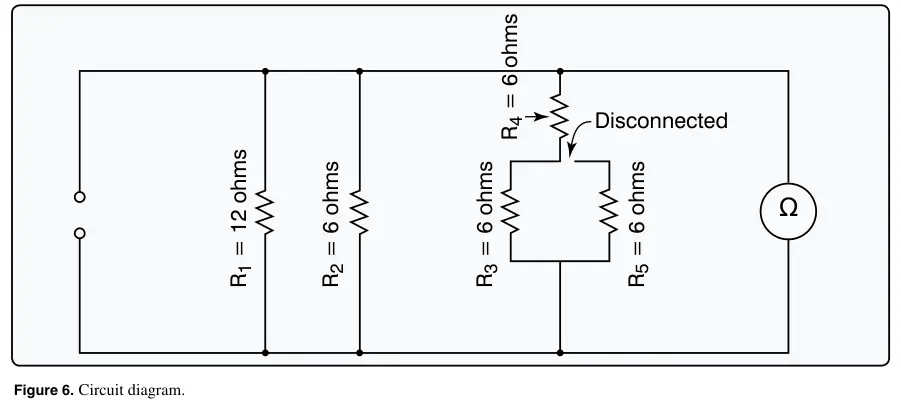

Figure 6: Circuit diagram

Airman Knowledge Testing Supplement for Aviation Maintenance Technician – General, Airframe, and Powerplant; and Parachute RiggerOfficial PDF AMG

Practice

Text in this figure

Disconnected Ω R1 = 12 ohms R2 = 6 ohms R3 = 6 ohms R4 = 6 ohms R5 = 6 ohms
