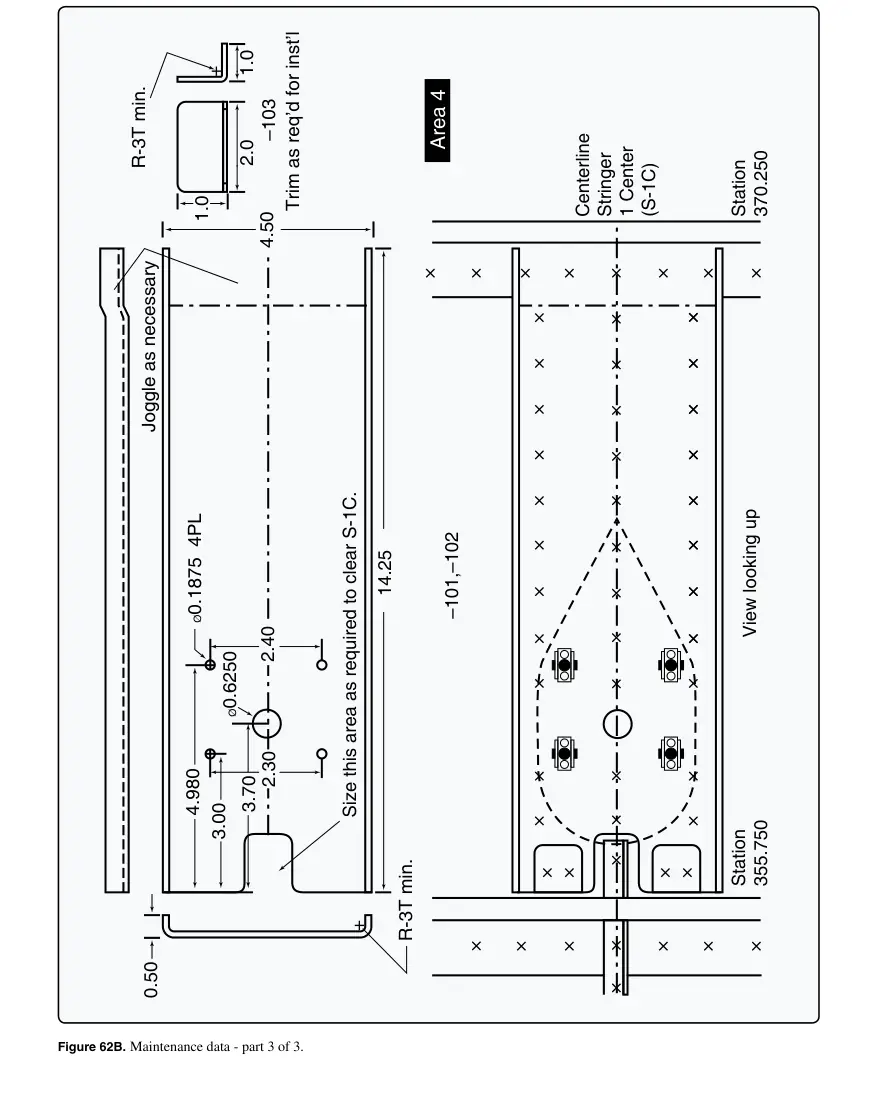

Figure 62B: Maintenance data - part 3 of 3

Station 355.750 Station 370.250 Centerline Stringer 1 Center (S-1C) View looking up –101,–102 14.25 2.40 2.30 3.70 3.00 4.980 0.50 R-3T min. Ø0.6250 Ø0.1875 4PL Joggle as necessary Trim as req’d for inst’l R-3T min. –103 4.50 2.0 1.0 1.0 Size this area as required to clear S-1C. Area 4 × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × × + × × × × × × × +
