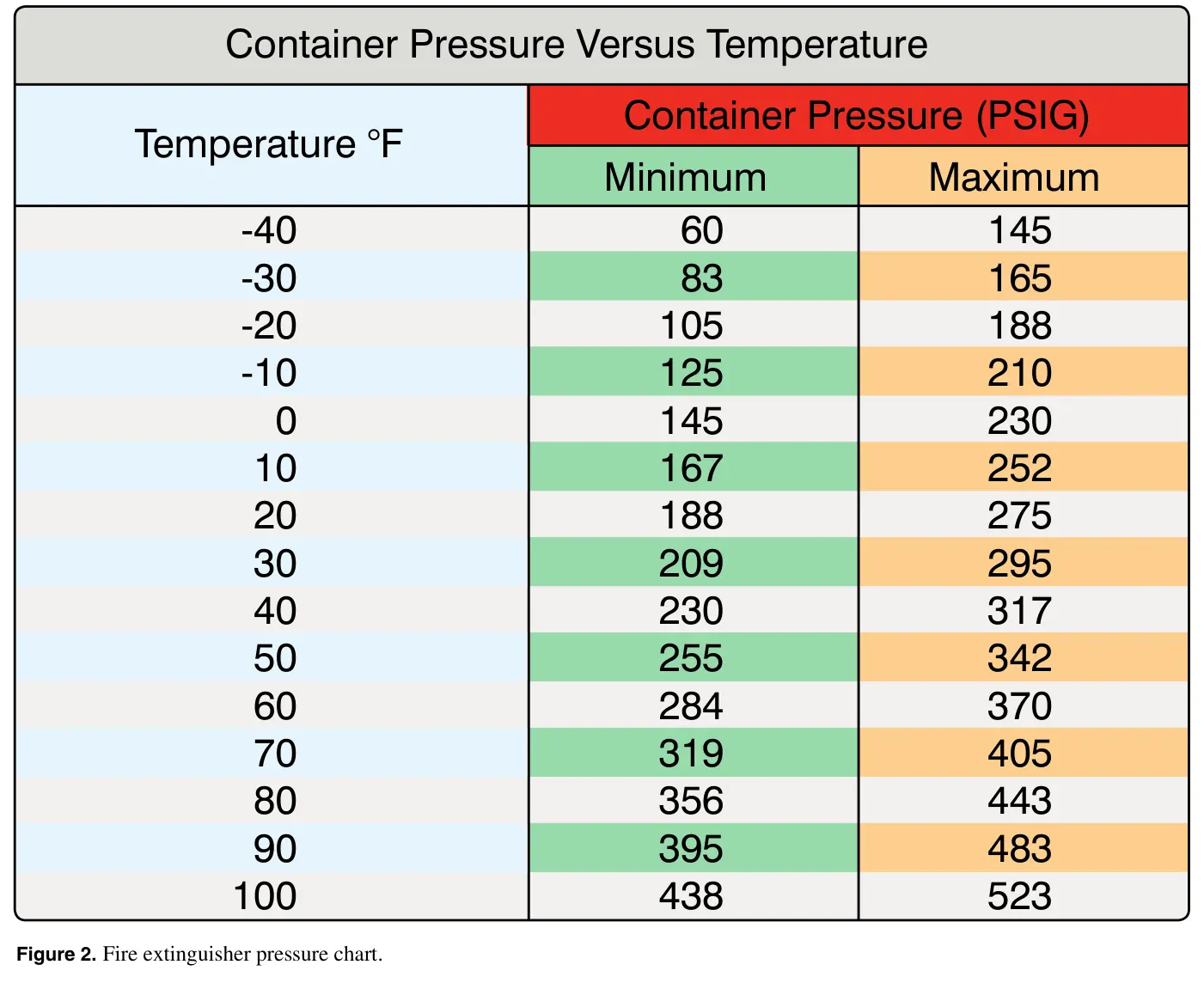

Figure 2: Fire extinguisher pressure chart
Airman Knowledge Testing Supplement for Aviation Maintenance Technician – General, Airframe, and Powerplant; and Parachute RiggerOfficial PDF AMP
Practice
Sign in to practice with this figureText in this figure
Container Pressure Versus Temperature Temperature °F Container Pressure (PSIG) Minimum Maximum -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90 100 60 83 105 125 145 167 188 209 230 255 284 319 356 395 438 145 165 188 210 230 252 275 295 317 342 370 405 443 483 523
