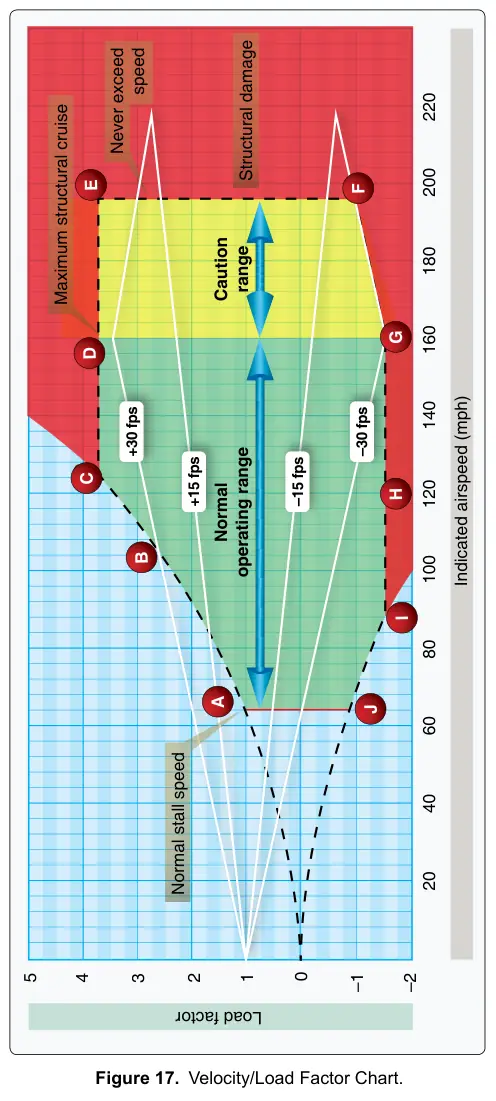

Figure 17: Velocity/Load Factor Chart
Airman Knowledge Testing Supplement for Flight Instructor, Ground Instructor, and Sport Pilot InstructorOfficial PDF FOIBGIAGIFIAFRHFRGFIGAFAHFAGFAAFGMCISIASIBSIGSILSIPSIRSIW
Practice
Sign in to practice with this figureText in this figure
0 –1 2 –2 1 5 4 3 Load factor Indicated airspeed (mph) Caution range Normal operating range Maximum structural cruise 20 40 60 80 100 120 140 160 180 200 220 Never exceed speed Structural damage J I H G F E D B C Normal stall speed A –30 fps +30 fps –15 fps +15 fps
