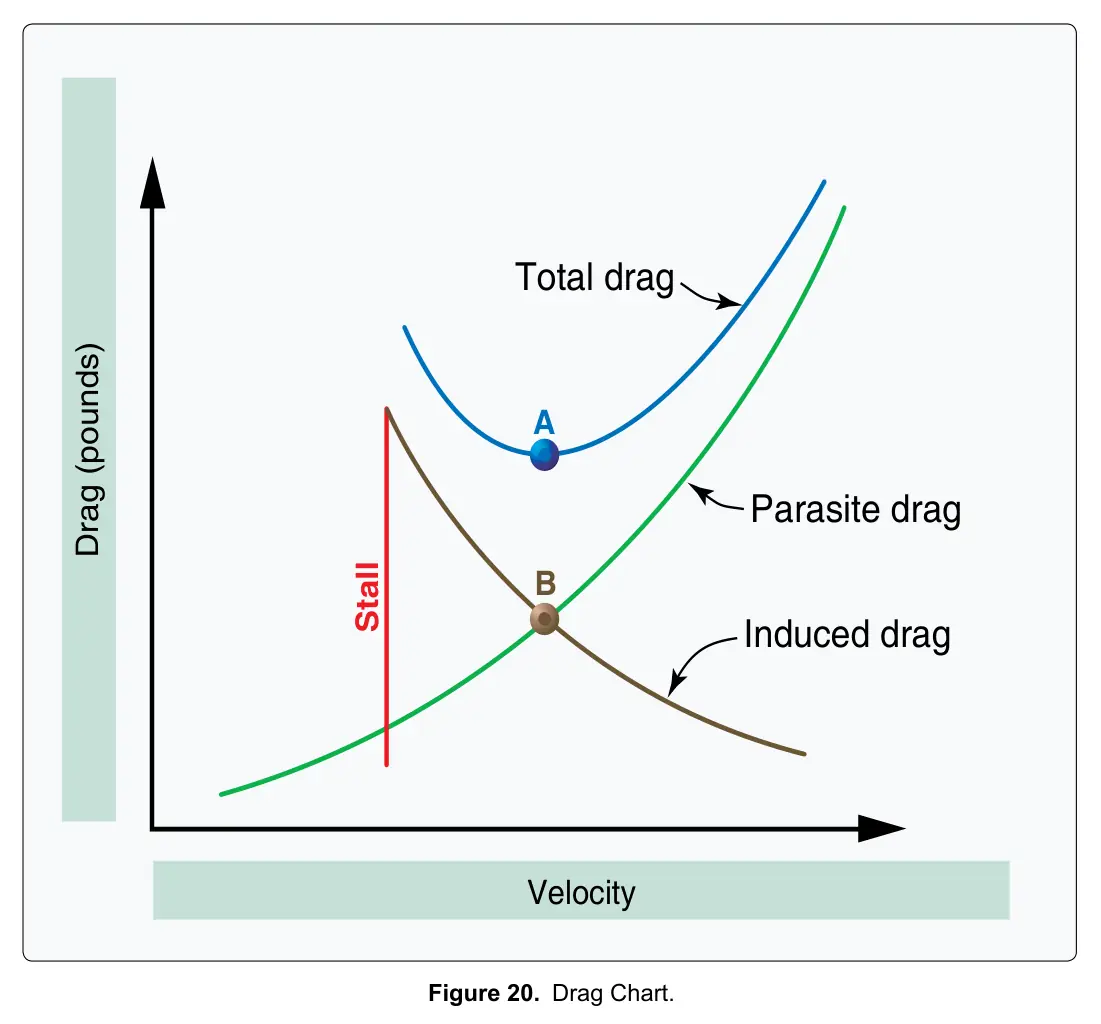

Figure 20: Drag Chart

Airman Knowledge Testing Supplement for Flight Instructor, Ground Instructor, and Sport Pilot InstructorOfficial PDF FOIBGIAGIFIAFRHFRGFIGAFAHFAGFAAFGMCISIASIBSIGSILSIPSIRSIW

Practice

Text in this figure

Drag (pounds) Velocity Stall A B Total drag Parasite drag Induced drag
