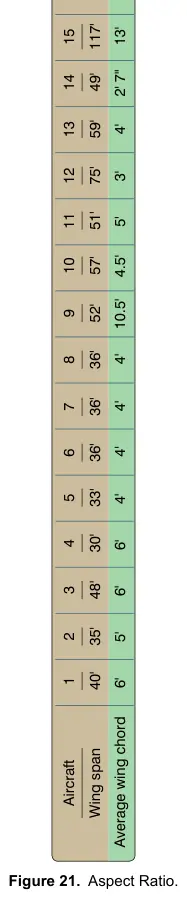

Figure 21: Aspect Ratio
Airman Knowledge Testing Supplement for Flight Instructor, Ground Instructor, and Sport Pilot InstructorOfficial PDF FOIBGIAGIFIAFRHFRGFIGAFAHFAGFAAFGMCISIASIBSIGSILSIPSIRSIW
Practice
Sign in to practice with this figureText in this figure
Aircraft Wing span 1 40' 2 35' 3 48' 4 30' 5 33' 6 36' 7 36' 8 36' 9 52' 10 57' 11 51' 12 75' 13 59' 14 49' 15 117' Average wing chord 6' 5' 6' 6' 4' 4' 4' 4' 10.5' 4.5' 5' 3' 4' 2' 7" 13'
