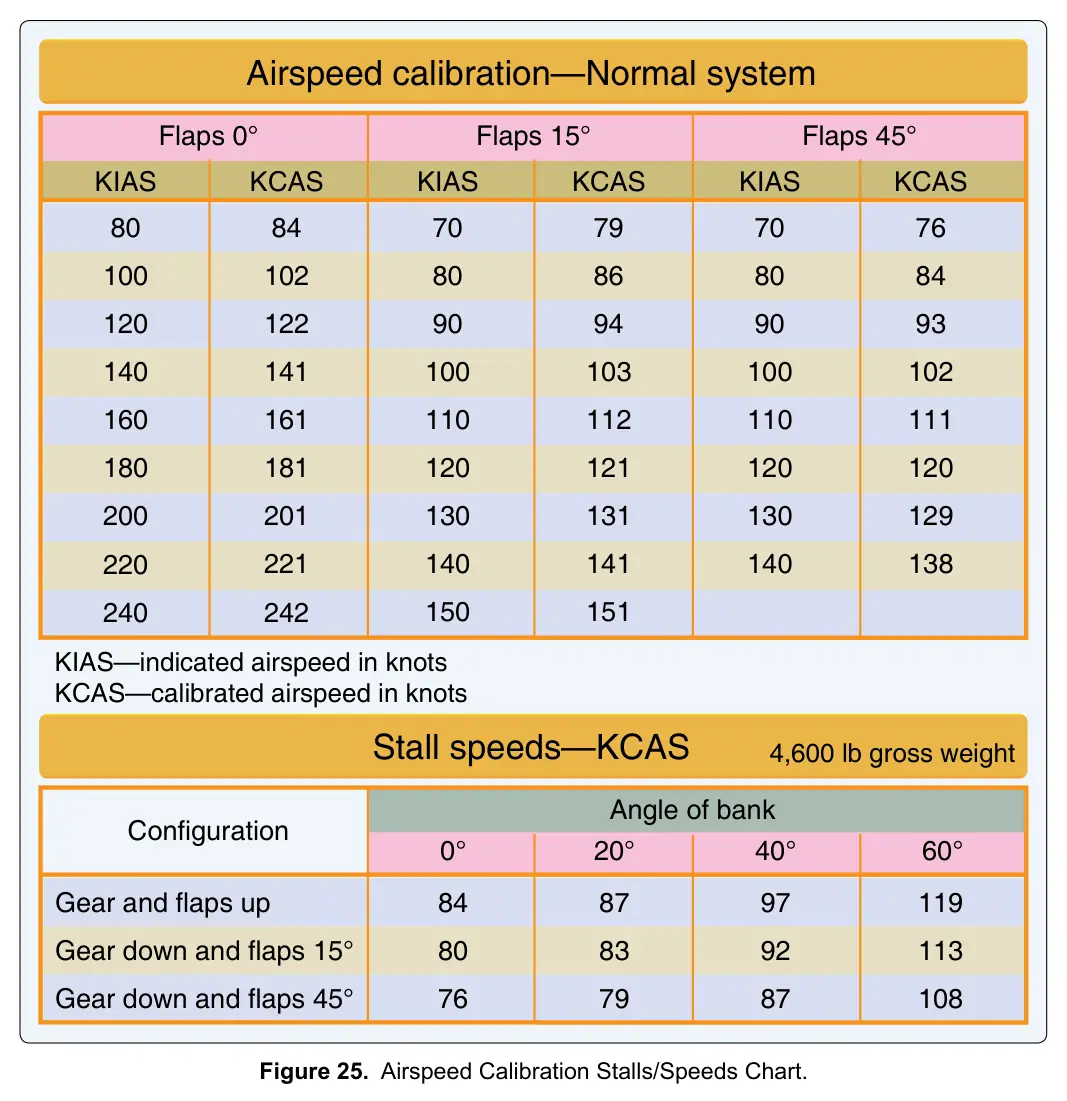

Figure 25: Airspeed Calibration Stalls/Speeds Chart

Airspeed calibration—Normal system Stall speeds—KCAS Flaps 0° Flaps 15° Flaps 45° KIAS 80 100 120 140 160 180 200 220 240 KCAS 84 102 122 141 161 181 201 221 242 KIAS 70 80 90 100 110 120 130 140 150 KCAS 79 86 94 103 112 121 131 141 151 KIAS 70 80 90 100 110 120 130 140 KCAS 76 84 93 102 111 120 129 138 Configuration 0° 20° Angle of bank 40° 60° Gear and flaps up Gear down and flaps 15° Gear down and flaps 45° 84 80 76 87 83 79 97 92 87 119 113 108 4,600 lb gross weight KIAS—indicated airspeed in knots KCAS—calibrated airspeed in knots
