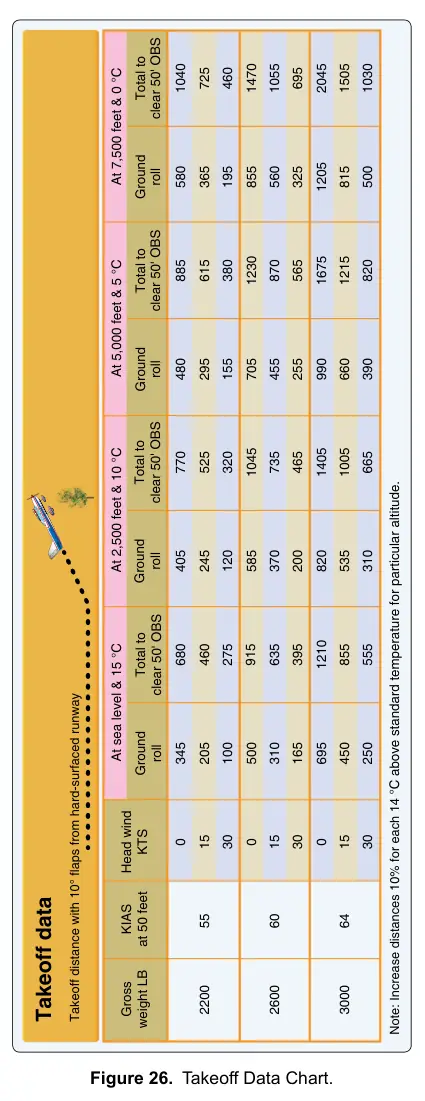

Figure 26: Takeoff Data Chart

Takeoff data Gross weight LB KIAS at 50 feet Head wind KTS At sea level & 15 °C At 2,500 feet & 10 °C At 5,000 feet & 5 °C At 7,500 feet & 0 °C Ground roll Total to clear 50' OBS 2200 2600 3000 55 60 64 0 15 30 0 15 30 0 15 30 345 205 100 500 310 165 695 450 250 680 460 275 915 635 395 1210 855 555 Ground roll Total to clear 50' OBS 405 245 120 585 370 200 820 535 310 770 525 320 1045 735 465 1405 1005 665 Ground roll Total to clear 50' OBS 480 295 155 705 455 255 990 660 390 885 615 380 1230 870 565 1675 1215 820 Ground roll Total to clear 50' OBS 580 365 195 855 560 325 1205 815 500 1040 725 460 1470 1055 695 2045 1505 1030 Takeoff distance with 10° flaps from hard-surfaced runway Note: Increase distances 10% for each 14 °C above standard temperature for particular altitude.
