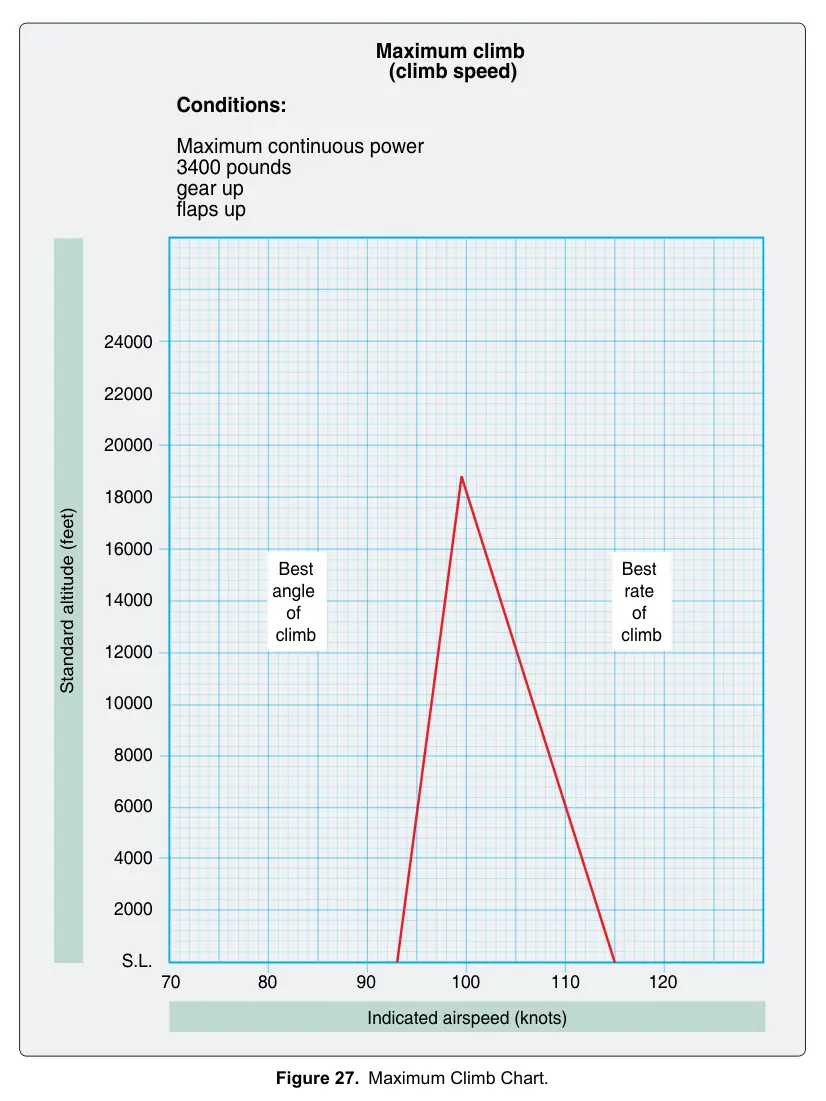

Figure 27: Maximum Climb Chart
Airman Knowledge Testing Supplement for Flight Instructor, Ground Instructor, and Sport Pilot InstructorOfficial PDF FOIBGIAGIFIAFRHFRGFIGAFAHFAGFAAFGMCISIASIBSIGSILSIPSIRSIW
Practice
Sign in to practice with this figureText in this figure
Standard altitude (feet) Conditions: Maximum continuous power 3400 pounds gear up flaps up Indicated airspeed (knots) 24000 22000 20000 18000 16000 14000 12000 10000 8000 6000 4000 2000 S.L. 70 80 90 100 110 120 Maximum climb (climb speed) Best angle of climb Best rate of climb
