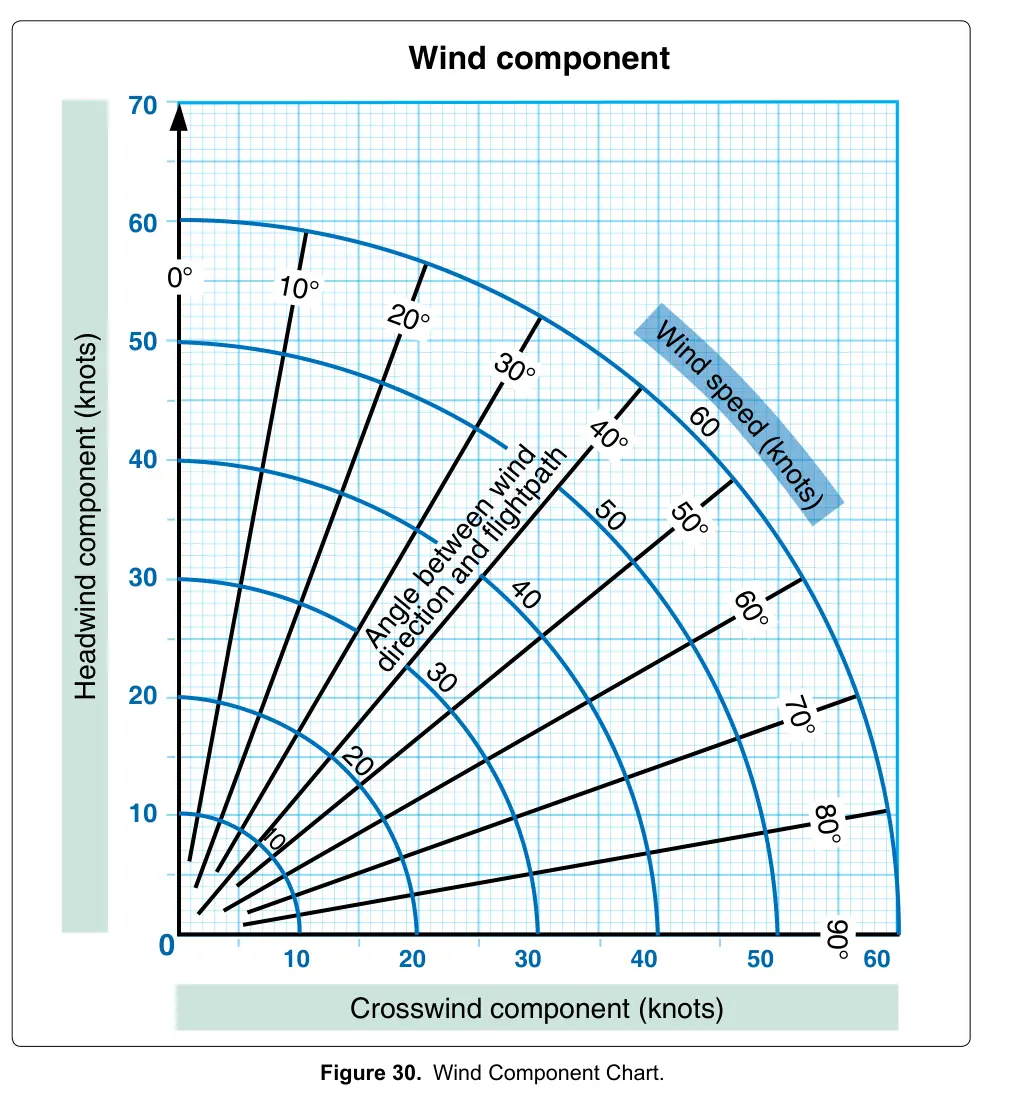

Figure 30: Wind Component Chart
Airman Knowledge Testing Supplement for Flight Instructor, Ground Instructor, and Sport Pilot InstructorOfficial PDF FOIBGIAGIFIAFRHFRGFIGAFAHFAGFAAFGMCISIASIBSIGSILSIPSIRSIW
Practice
Sign in to practice with this figureText in this figure
Crosswind component (knots) Headwind component (knots) 70 60 50 40 30 20 10 10 20 30 40 50 60 Wind component 0 Wi nd spe ed ( knots ) 0° 10° 20° 30° 40° 50° 60° 70° 80° 90° Angle between wind direction and flightpath 60 50 40 30 20 10
