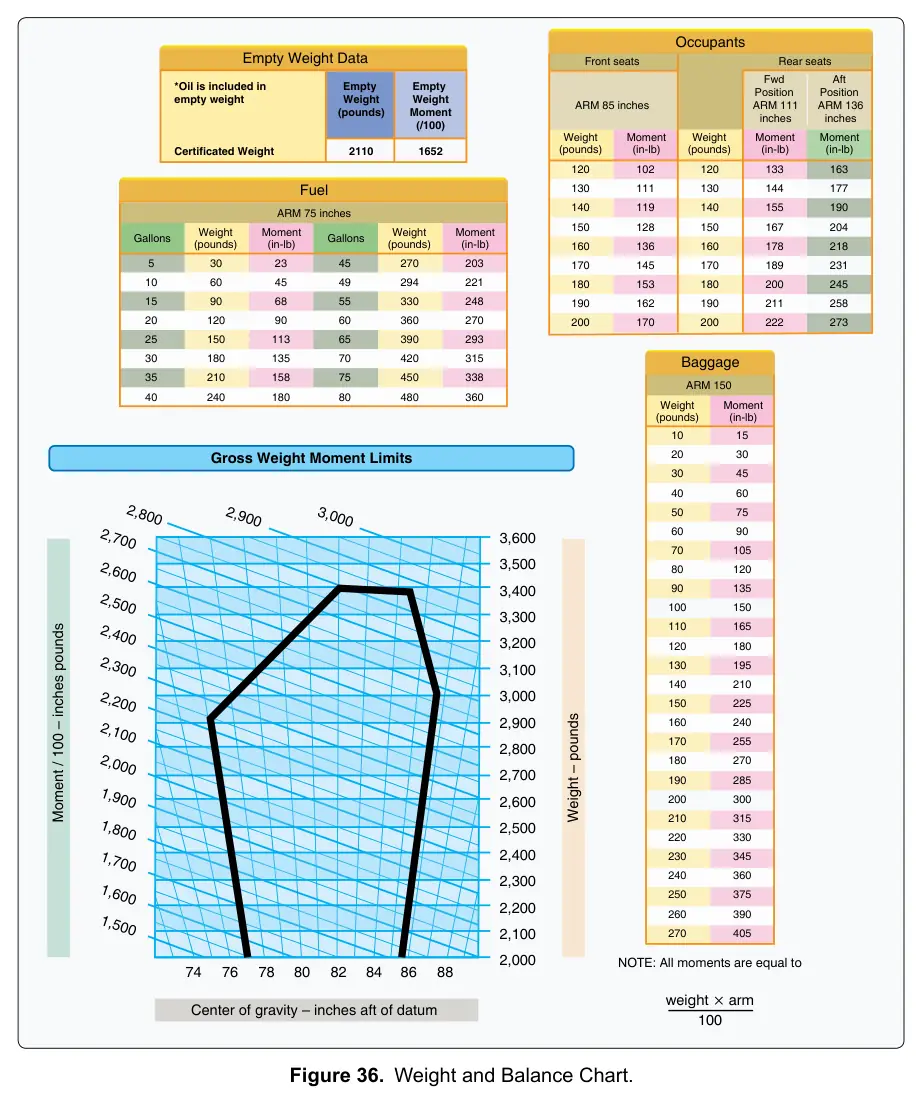

Figure 36: Weight and Balance Chart

Occupants ARM 85 inches Rear seats Front seats Fwd Position ARM 111 inches Aft Position ARM 136 inches Weight (pounds) 120 130 140 150 160 170 180 190 200 102 111 119 128 136 145 153 162 170 120 130 140 150 160 170 180 190 200 133 144 155 167 178 189 200 211 222 Moment (in-lb) Weight (pounds) Moment (in-lb) 163 177 190 204 218 231 245 258 273 Moment (in-lb) Baggage ARM 150 Weight (pounds) 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 15 30 45 60 75 90 105 120 135 150 165 180 195 210 225 240 255 270 285 300 315 330 345 360 375 390 405 Moment (in-lb) Fuel ARM 75 inches Gallons 5 10 15 20 25 30 35 40 30 60 90 120 150 180 210 240 23 45 68 90 113 135 158 180 45 49 55 60 65 70 75 80 270 294 330 360 390 420 450 480 203 221 248 270 293 315 338 360 Weight (pounds) Moment (in-lb) Gallons Weight (pounds) Moment (in-lb) Empty Weight Data *Oil is included in empty weight Certificated Weight Empty Weight (pounds) 2110 Empty Weight Moment (/100) 1652 NOTE: All moments are equal to weight × arm 100 3,600 3,500 3,400 3,300 3,200 3,100 3,000 2,900 2,800 2,700 2,600 2,500 2,400 2,300 2,200 2,100 2,000 3,000 2,900 2,800 2,700 2,600 2,500 2,400 2,300 2,200 2,100 2,000 1,900 1,800 1,700 1,600 1,500 74 76 78 80 82 84 86 88 Center of gravity – inches aft of datum Moment / 100 – inches pounds Weight – pounds Gross Weight Moment Limits
