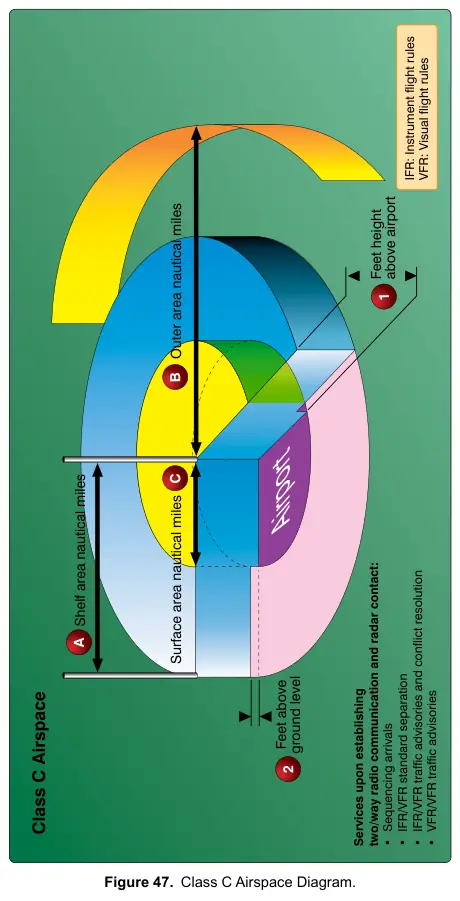

Figure 47: Class C Airspace Diagram
Airman Knowledge Testing Supplement for Flight Instructor, Ground Instructor, and Sport Pilot InstructorOfficial PDF FOIBGIAGIFIAFRHFRGFIGAFAHFAGFAAFGMCISIASIBSIGSILSIPSIRSIW
Practice
Sign in to practice with this figureText in this figure
Airport 1 2 A B C Feet above ground level Shelf area nautical miles Outer area nautical miles Surface area nautical miles Services upon establishing two/way radio communication and radar contact: • Sequencing arrivals • IFR/VFR standard separation • IFR/VFR traffic advisories and conflict resolution • VFR/VFR traffic advisories Feet height above airport IFR: Instrument flight rules VFR: Visual flight rules Class C Airspace
